Extech 382100: 1200A 3-Phase Power Analyzer/Datalogger
Kode Produk: 15388
EV0119Produk baru
Info lainnya
Spesifikasi Extech 382100: 1200A 3-Phase Power Analyzer/Datalogger
| Specifications | Range | Basic Accuracy |
|---|---|---|
| ACV (True rms) | 600.0V | ±(0.5%rdg+0.5V) |
| ACA | 1200A | ±(0.5%rdg+0.5A) |
| Active Power (MW) | 9.999MW | ±(1.0%rdg+0.08KW) |
| Apparent Power (MVA) | 9.999MVA | ±(1.0%rdg+0.08KVA) |
| Reactive Power (MVAR) | 9.999MVAR | ±(1.0%rdg+0.08KVAR) |
| Power Factor | 0.00 to 1.00 | ±0.04 |
| Frequency Range | 45Hz to 65Hz | ±0.1Hz |
| Phase | -180° to +180.0° | ±1° |
| Active Power Energy (MWh) | 0.0kWh to 9.999MWHr | ±(2.0%rdg+0.08KWh) |
| Apparent Power Energy (MVAh) | 0.0KVAh to 9.999MVAh | ±(2.0%rdg+0.08KVAh) |
| Reactive Power Energy (MVARh) | 0.0kVARh to 9.999MVARh | ±(2.0%rdg+0.08KVARh) |
| Datalogging | 60,000 readings (2GB SD memory Card) | |
| CE/CAT rating | CE/CAT III-600V | |
Berat dan ukuran Extech 382100: 1200A 3-Phase Power Analyzer/Datalogger
| Dimensions | 8.9 x 2.5 x 1.3" (225 x 125 x 64mm) |
| Weight Meter | 2.3lbs (1049g); Clamp: 1.2lbs (522g) |
Ringkasan Produk Extech 382100: 1200A 3-Phase Power Analyzer/Datalogger

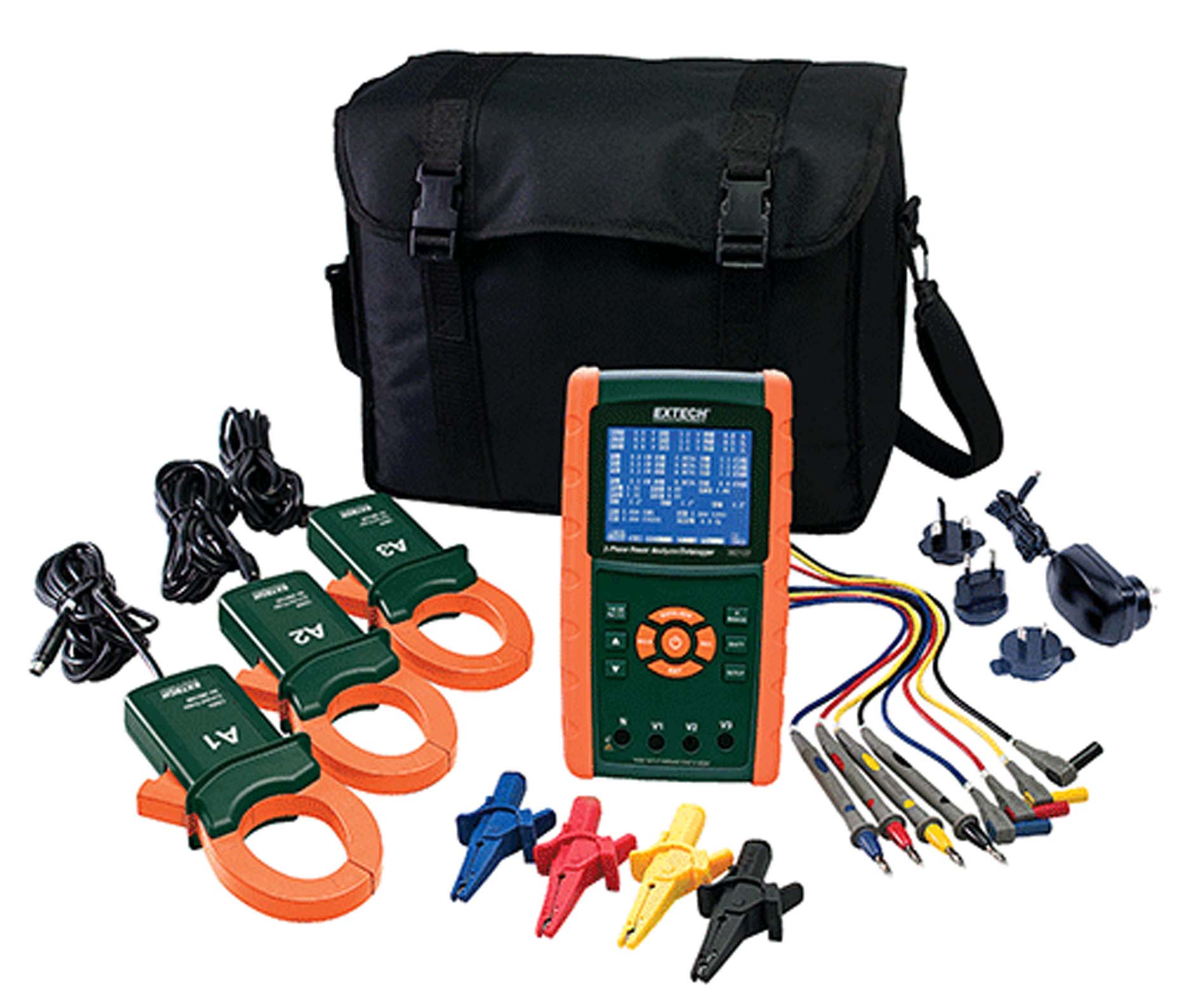

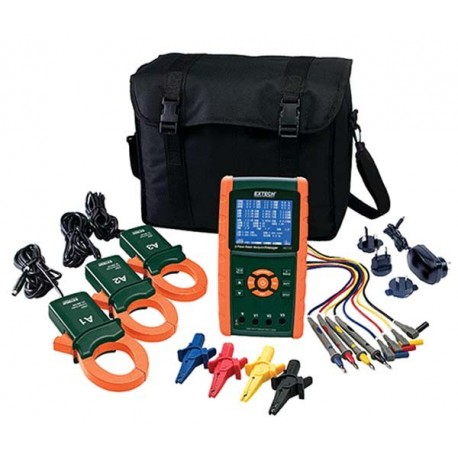

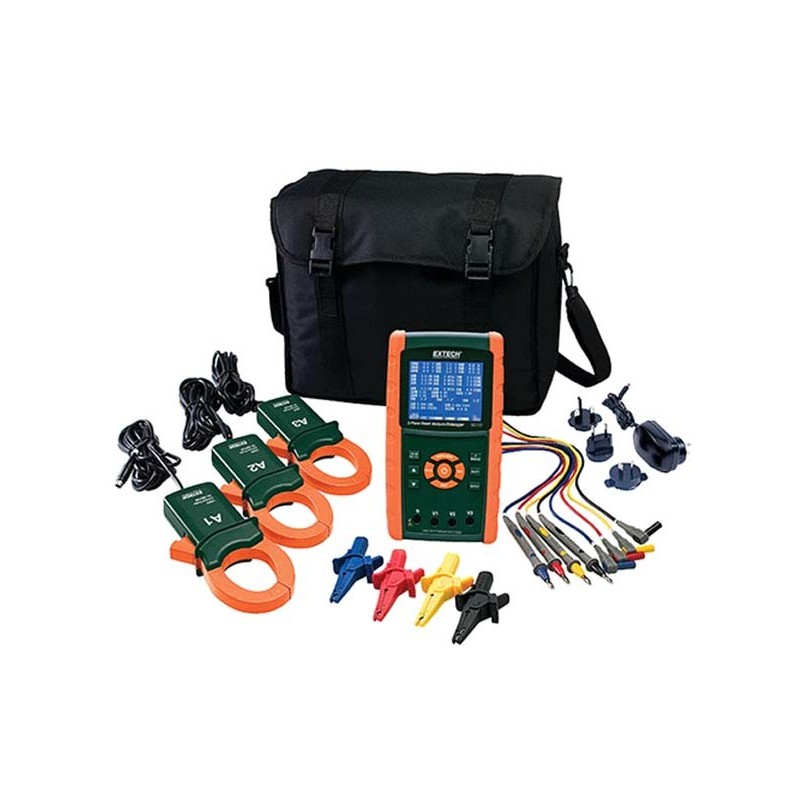

382100 adalah 3-Phase Power Analyzer / Datalogger yang menyimpan data (hingga 30.000 set pengukuran) pada kartu SD dalam format Excel untuk memudahkan transfer ke PC Anda. Ini memberikan analisis sistem lengkap dengan hingga 35 parameter termasuk: V (fase-ke-fase), V (fase-ke-tanah) - A (fase-ke-tanah), KW / KVA / KVAR / PF (fase) , KW / KVA / KVAR / PF (sistem), KWH / KVAH / KVARH / PFH (sistem), dan Phase Phase. Bacaan ditampilkan pada LCD besar, dot matrix, dapat dibaca matahari, backlit. Dilengkapi dengan tiga klem saat ini, empat lead tegangan dengan klip buaya, delapan baterai AA, kartu memori SD, adaptor AC Universal (100 hingga 240V), kasing, dan buku petunjuk.Features
- Single phase, 3-phase/3-wire or 3-phase/4-wire systems
- Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
- Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
- Current measurements to 1200A and Voltage measurements to 600V
- MWH, MVAh, MVARh energy measurements
- Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
- Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
- User-programmable sampling time from 2 to 7200 seconds
