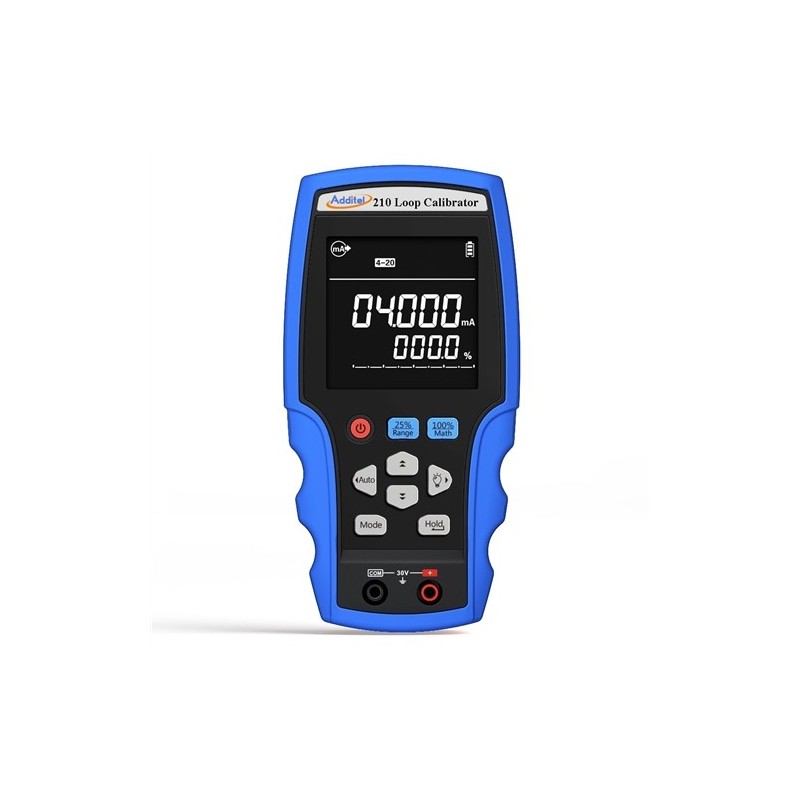

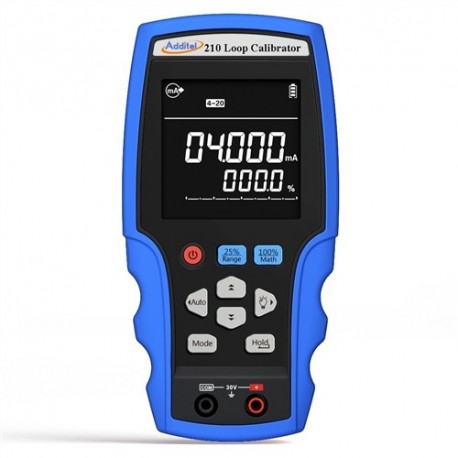

Additel ADT210 Current Loop Calibrator, DC Volts, HART Communication, 0.01% Accuracy
Kode Produk: 14604
AI1216/ET7/L10Produk baru
- Accuracy of 0.1% of reading
- HART 250Ω resistor in series with 24V loop
- Measure, source, or simulate loop current
- Measure DC volts
Info lainnya
Spesifikasi Additel ADT210 Current Loop Calibrator, DC Volts, HART Communication, 0.01% Accuracy
| Voltage DC1 | 0.01%RD + 2mV |
| Current DC2 | 0.01%RD + 2μA |
| Source mode | 700Ω/20 mA maximum |
| Sink mode | External loop voltage nominal 24V, maximum 30V, minimum 12V |
| Voltage limit | 30V between terminals or between terminals and ground |
| Measurement Functions | Auto step, auto ramp, span step |
| Display | VA LCD display. 2.04 x 2.04 in (52 x 52 mm) |
| Loop power | 24V |
| Over-voltage protection | 30V DC (240V AC) |
| Overload current protection | 33 mA DC |
| Storage temperature | -20°C to 70°C |
| Working Environment | -10 to 50°C, 95%RH |
| Working Altitude | <3,000 m |
| Vibration/shock Random | 2G 5 to 500Hz 1 meter drop |
| Power One | 9V alkaline battery (ANSI/NEDA 1604A or IEC) DC9V optional adapter available |
| Battery life (typical) Output mode | 18 hours (12 mA/500Ω) |
| Measure mode | 50 hours |
| Calibration Certification | NIST-traceable certificate of calibration with data |
Berat dan ukuran Additel ADT210 Current Loop Calibrator, DC Volts, HART Communication, 0.01% Accuracy
| Size (LxWxH) | 163 x 83 x 41 mm |
| Weight | 350 g |
Isi Paket Additel ADT210 Current Loop Calibrator, DC Volts, HART Communication, 0.01% Accuracy
| Include | 1 - Test Lead Set 2 - Alligator Clips 1 - User Manual 1 - 9V Alkaline Battery |
Ringkasan Produk Additel ADT210 Current Loop Calibrator, DC Volts, HART Communication, 0.01% Accuracy
The Additel ADT210 lingkaran kalibrator menggabungkan kemudahan penggunaan dan fungsionalitas, menjadikannya alat yang ideal untuk memecahkan lingkaran proses Anda. ADT210 memegang akurasi 0,01% dari membaca. Jika Anda ingin sumber, mensimulasikan atau hanya mengukur Additel ADT210 akan sesuai kebutuhan Anda. ADT210 memungkinkan untuk pengukuran arus, tegangan dan switch. Anda juga dapat mensimulasikan atau mA sumber atau pemancar proses. Dengan menekan sebuah tombol, Anda dapat beralih ke nol dan rentang nilai-nilai, auto jalan, dan langkah auto seluruh jangkauan. Setiap kalibrator loop besar, mudah dibaca layar yang sekaligus menampilkan pengukuran dengan% dari span.30 produk lainnya dikategori yang sama:
-
