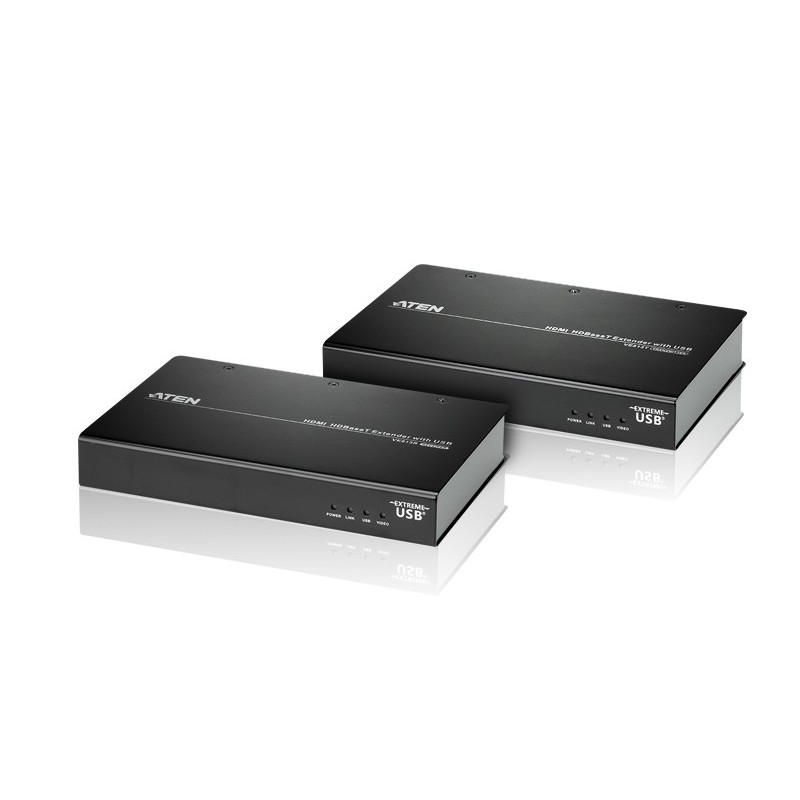

Aten VE813 HDMI/USB HDBaseT Extender 4K 100m
Kode Produk: 31323
Aten DiscontinuedProduk baru
Type Pengganti Aten VE813A
- HDMI HDBaseT Extender with USB
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Info lainnya
Spesifikasi Aten VE813 HDMI/USB HDBaseT Extender 4K 100m
| Function | VE813R | VE813T |
| Video Input | ||
| Interfaces | - | 1 x HDMI Type A Female (Black) |
| Impedance | - | 100 Ώ |
| Max. Distance | - | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | - |
| Impedance | 100 Ώ | - |
| Video | ||
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | Up to 340 MHz | Up to 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | - | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | - |
| Control | ||
| USB Channel | 3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 30 Mbps) |
1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 30 Mbps) |
| Power | ||
| Connectors | 1 x DC Jack | 1 x DC Jack |
| Consumption | 5 VDC, 5.75W Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied. |
5 VDC, 5.75W Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied. |
| Environmental | ||
| Operating Temperature | 0-50°C | 0-50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
Berat dan ukuran Aten VE813 HDMI/USB HDBaseT Extender 4K 100m
| Weight | 0.62 kg ( 1.37 lb ) & 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.61 x 2.87 cm & 18.20 x 11.61 x 2.87 cm |
Isi Paket Aten VE813 HDMI/USB HDBaseT Extender 4K 100m
| Package Contents | 1x VE813T HDMI HDBaseT Extender with USB 1x VE813R HDMI HDBaseT Extender with USB 1x HDMI Cable 1x USB Cable 2x Power Adapters 1x Mounting Kit 1x User Instructions |
