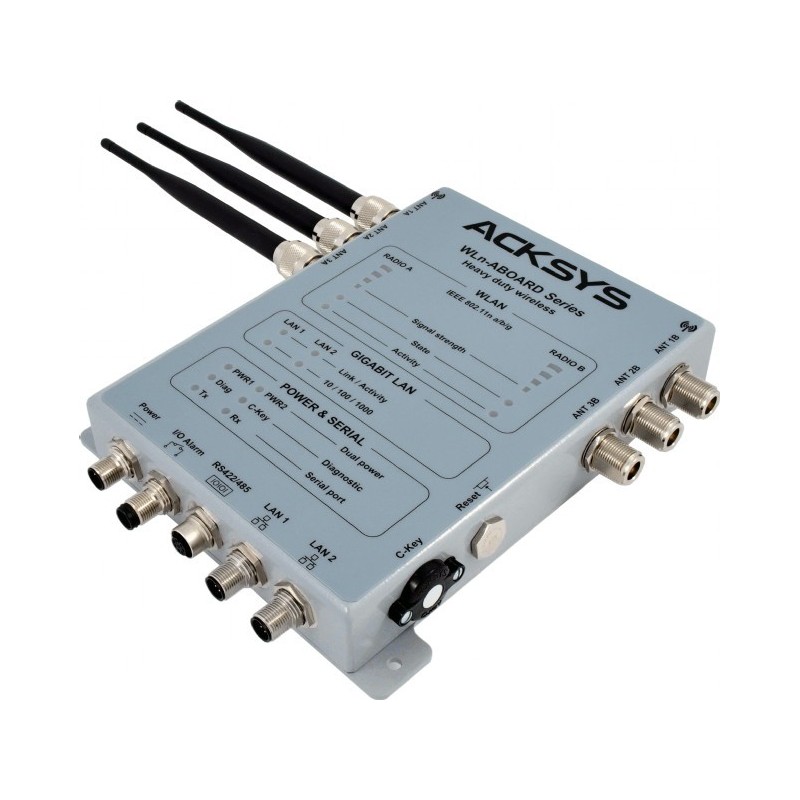

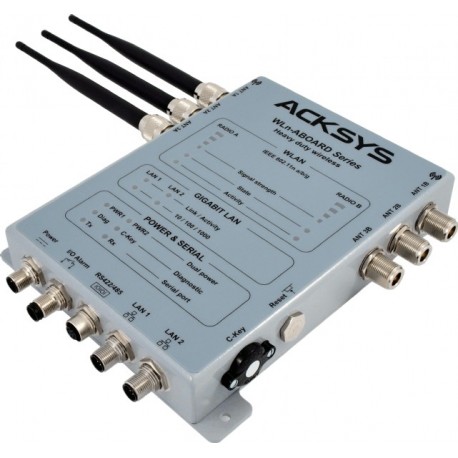

Acksys WLn-ABOARD mobile wireless modules

Kode Produk: 30573

Referensi AI0816/ET7/L10

Kondisi: Produk baru

2-port Ethernet, dual WiFi radio: Bridge, bridge router, access Point,
repeater (MESH) & virtual cable

Lebih detail

Kirim ke teman

Kirim ke teman

Acksys WLn-ABOARD mobile wireless modules
2-port Ethernet, dual WiFi radio: Bridge, bridge router, access Point,
repeater (MESH) & virtual cable

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Acksys WLn-ABOARD mobile wireless modules

Functions	2-port Ethernet, dual WiFi radio: Bridge, bridge router, access Point, repeater (MESH) & virtual cable
Format	IP66 aluminun enclosure, universal mounting
Number of serial channel	1
MODBUS / PROFINET / Ethernet/IP support	MODBUS/TCP, PROFINET & Ethernet/IP wireless gateway Windows COM port redirection
Serial Link	Insulated RS422, RS485
Maximum speed	2 x 300 Mbps
Connection type	CAT-6A M12 connectors for Ethernet, 6-point M12 for power supply, 8-point M12 for serial, 4-point for I/O
Connection cable	1 x M12 power supply cable and 1 x M12 Ethernet cable
Ethernet link	2-port Gigabit 10/100/1000 auto-sensing, auto-MDI/MDIX
Radio link	2 triband radios WiFi IEEE 802.11n a/b/g (MIMO 3T3R)
Radio redudancy	Yes, Internally between the two radios or externally between two devices
Frequency range	2.4 / 5 / 5.4 GHz
High power RF card option	Yes, 400mW (Hx option)
Radio Modem (AD HOC) mode	Yes, Bridge mode
Rapid roaming	0 mS (dual radio) < 50 mS (single radio)
Antennas connections	Up to 6 2.4/5GHz MIMO antenna (not shipped with the product) External antenna connector for long range communications 6 weather Proof female N-type connectors Nominal range with built-in antennas 300m, open field
Security	WPA-PSK, WPA2-PSK, WEP 64/128 bits, IEEE 802.1X (RADIUS) MAC addresses filtering SSID broadcast control
Number of WiFi clients in AP mode	100
Administration	Web browser SNMP, ACKSYS NDM, serial port, Telnet/SSH, CLI
Default signaling	Relay output warning: power failure, LAN or WLAN connection failure, watchdog
Power consumption	16W typical (one radio) 21W typical (two radios) Power over Ethernet
Environnement	UTAC E2 certified Shocks & vibrations MIL-STD-810F Qualified for on-road, railways transportation (EN50155 / EN 50121) Operating temperature from -25°C to +70°C or extended -40°C to +75°C (-55°C cold start with optional PTC heater)
Temperature monitoring	Yes
LED Signalling	Yes
RF level display	Yes, for each radio in Bridge mode

Berat dan ukuran Acksys WLn-ABOARD mobile wireless modules

Dimensions	L:160 x W:220 x H:35 mm
Weight	1200g

Ringkasan Produk Acksys WLn-ABOARD mobile wireless modules

ACKSYS mengusulkan berbagai peralatan nirkabel ( WLAN ) untuk bidang industri dan transportasi mengandalkan standar WiFi IEEE 802.11 ( 2,4 & 5 GHz ) dan pada 900 MHz radio tanpa izin untuk jarak jauh dan non - line- of-sight operasi termasuk : jalur akses , jembatan , jembatan router , repeater , serial ke gateway nirkabel , switch radio , paket untuk titik ke titik komunikasi .

Peralatan ini memungkinkan untuk :

Membangun jaringan nirkabel
Hubungkan RS232 , RS422 , RS485 seri peralatan bersama tanpa operasi kabel
Menghubungkan jaringan Ethernet bersama-sama tanpa kabel apapun
Membangun jembatan nirkabel antara jaringan Modbus serial dan MODBUS / TCP
Nirkabel menghubungkan Ethernet , Modbus / TCP , PROFINET , Ethernet / IP , peralatan DNP3 .
