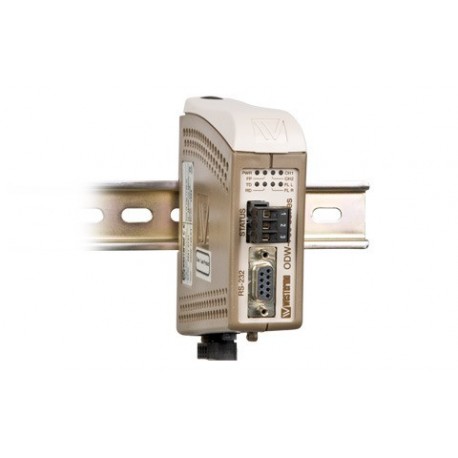

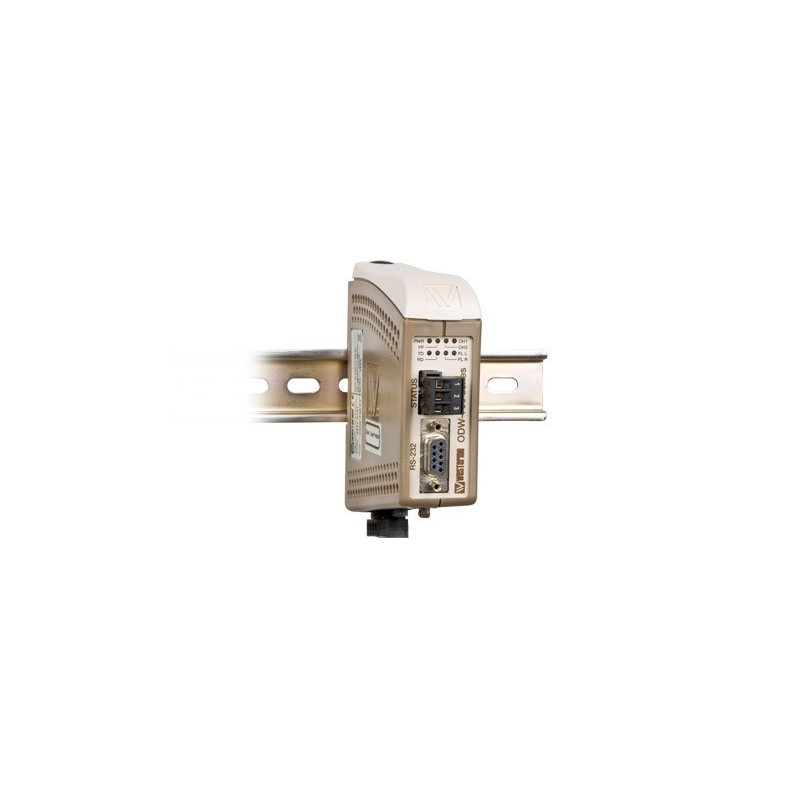

Westermo ODW-720-F1 Point-to-Point Fibre Converter RS-232

Kode Produk: 30595

Referensi SY0222

Kondisi: Produk baru

Point-to-Point Fibre Converter, RS-232, 1 x Detachablezscrew terminal Status, 1 x RS-232, 1 x LC Duplex or LC Simplex, FX (Fibre)

Lebih detail

Kirim ke teman

Kirim ke teman

Westermo ODW-720-F1 Point-to-Point Fibre Converter RS-232
Point-to-Point Fibre Converter, RS-232, 1 x Detachablezscrew terminal Status, 1 x RS-232, 1 x LC Duplex or LC Simplex, FX (Fibre)

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Westermo ODW-720-F1 Point-to-Point Fibre Converter RS-232

Ports	1 x Detachable screw terminal, Status 1 x RS-232 1 x LC Duplex or LC Simplex, FX (Fibre)
Description	Point-to-Point Fibre Converter, RS-232
Warranty period	5 Years
EMC (Electromagnetic Compatibility)
EN 61000-6-1	Immunity residential environments
EN 61000-6-2	Immunity industrial environments
EN 61000-6-3	Emission residential environments
EN 61000-6-4	Emission industrial environments
EN 55022	Emission IT equipment, class A
EN 55024	Immunity IT equipment
FCC part 15	Class A
EN 50121-4	Railway signalling and telecommunications apparatus
IEC 62236-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Enclosure contact, ± 6 kV Enclosure air, ± 8 kV
IEC 61000-4-3, RF field AM modulated	Enclosure: 10 V/m 80% AM (1 kHz), 80 – 800 MHz 20 V/m 80% AM (1 kHz), 800 – 1000 MHz 20 V/m 80% AM (1 kHz), 1400 – 2700 MHz
ENV 50204, RF field 900 MHz	Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
EN 61000-4-4, fast transients	Signal ports, ± 2 kV Power ports, ± 2 kV
EN 61000-4-5, surge	Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line
EN 61000-4-6, conducted RF immunity	Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz
EN 61000-4-9, pulsed magnetic field	Enclosure, 300 A/m, 6.4 / 16 μs pulse
EN 61000-4-11, Voltage dips and interruption	AC power ports: 10 & 5 000 ms, interruption 200 ms, 40% residual voltage 500 ms, 70% residual voltage
EN 61000-4-16, Mains freq. 50 Hz	Signal ports, 100 V 50 Hz line to earth SS 436 15 03, Mains freq. 50 Hz Signal ports, 250 V 50 Hz line to line EN 55022, radiated RF emission Enclosure, class B
FCC part 15, radiated RF emission	Enclosure, class A
EN 55022, conducted emission	AC power ports, class B DC power ports, class A FCC part 15, conducted emission AC power ports, class B
Safety
Safety	UL/CSA/IEC/EN 60950-1, IT equipment EN 60950-1, dielectric strength Signal port to all other isolated ports, 2 kVrms 50 Hz 1 min
Power port to other isolated ports:	3 kVrms 50 Hz 1 min 2 kVrms 50 Hz 1 min (@ rated power < 60V)
Climatic
Temperature, operating	–40 to +70°C (–40 to +158°F)
Humidity, operating	5 to 95% relative humidity
Humidity, storage	5 to 95% relative humidity
Enclosure
Enclosure	UL 94, PC / ABS, flammability class V-1
Degree of protection	IP 21
Mounting	Horizontal on 35 mm DIN-rail
Mechanical
IEC 60068-2-6, vibration	Operating: 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz
IEC-60068-2-27, shock	Operating, 15 g, 11 ms
Interface specifications, power
Rated voltage	12 to 48 VDC and 24 VAC
Operating voltage	10 to 60 VDC and 20 to 30 VAC
Rated current	300 mA @ 12 V 150 mA @ 24 V 75 mA @ 48 V
Rated frequency	DC and 48 to 62 Hz
Inrush current	0.2 A²s
Startup current	1.0 Apeak
Polarity	Reverse polarity protected
Redundant power input	Yes
Isolation to	RS-232 and Status port
Connection	Detachable screw terminal
Connector size	0.75 – 2.5 mm² (AWG 18 – 13) Connect the unit using at least 18 AWG (0.75 mm2) wiring
Shielded cable	Not required
Interface specifications, status
Port type	Signal relay, changeover contacts
Rated voltage	Up to 48 VDC
Operating voltage	Up to 60 VDC
Contact rating	500 mA @ 48 VDC
Contact resistance	< 50 m Ohm
Isolation to	RS-232 and Power port
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm² (AWG 24 – 13)
Shielded cable	Not required
Interface specifications, RS-232
Electrical specification	EIA RS-232
Data rate	300 bit/s – 250 kbit/s
Protocol	Asynchronous or synchronous
Data format	9 – 12 bits in asynchronous mode Any type in synchronous mode
Retiming	Asynchronous mode only
Transmission range	15 m / 49 ft
Isolation to	Status and Power port
Connection	9-pin D-sub female (DCE)
Shielded cable	Not required, except when installed in railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing	Isolated to all other circuits and housings

Berat dan ukuran Westermo ODW-720-F1 Point-to-Point Fibre Converter RS-232

Dimensions (W x H x D)	35 x 121 x 119 mm (1.37 x 4.76 x 4.68 in)
Weight	0.26 kg

Ringkasan Produk Westermo ODW-720-F1 Point-to-Point Fibre Converter RS-232

ODW - 720 - F1 telah dirancang untuk memungkinkan RS - 232 protokol untuk ditransmisikan point-to -point melalui link serat optik . Desain ini memungkinkan penggunaan berbagai Westermo diverifikasi SFP ( Small Form Pluggable ) transceiver yang dapat memberikan solusi dengan , misalnya, hanya satu serat atau jarak hingga 120 km .
