TP-Link TX-6610 1-Port Gigabit GPON Terminal

Kode Produk: 33206

Referensi AI0918

Kondisi: Produk baru

Lebih detail

Kirim ke teman

Kirim ke teman

TP-Link TX-6610 1-Port Gigabit GPON Terminal
TP-Link TX-6610 1-Port Gigabit GPON Terminal

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi TP-Link TX-6610 1-Port Gigabit GPON Terminal

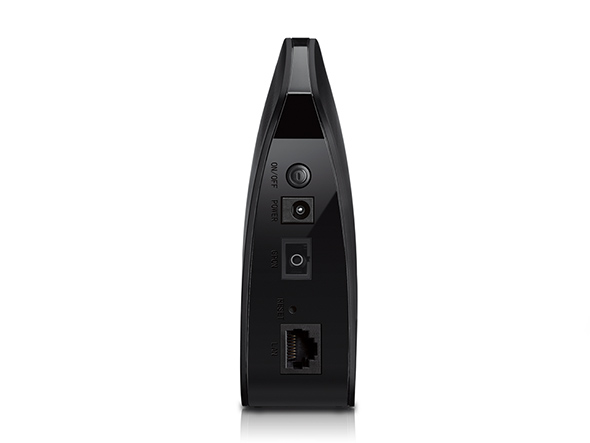

Interface	1 10/100/1000Mbps RJ45 Ports 1 SC/APC Port
Button	1 Power On/Off Button 1 RESET Button
External Power Supply	9VDC/0.6A
IEEE Standards	IEEE 802.3, 802.3u, 802.1Q, 802.1p
Data Rates	Upstream:1.244Gbps
Downstream	2.488Gbps
Distance	0~ 20Km Max
GPON Standards	ITU-T G.984.1, G.984.2, G.984.3, G.984.4
Optical Module	Class C+
Receiver	APD-TIA
Transmitter	DFB Laser
Wavelength	Upstream:1310nm Downstream:1490nm
Quality of Service	Service Flow Classification based on VLAN Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop
VLAN	802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect
Security	AES Encryption Packet Filter based on VLAN
Management	Managed by Web, OMCI and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic
Advanced Features	Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Berat dan ukuran TP-Link TX-6610 1-Port Gigabit GPON Terminal

Dimensions (W x D x H)	102.7 x 37.9 x 106.9mm

Isi Paket TP-Link TX-6610 1-Port Gigabit GPON Terminal

Package Contents	TX-6610 RJ-45 Ethernet Cable Quick Installation Guide Power Adapter

Ringkasan Produk TP-Link TX-6610 1-Port Gigabit GPON Terminal

TP-LINK TX-6610 adalah terminal Gigabit Passive Optical Network (GPON) generasi berikutnya, ideal untuk solusi Fiber to The Home. Ini adalah perangkat yang sangat kuat yang memungkinkan pengguna mengakses koneksi internet berkecepatan tinggi melalui port GPON-nya dan membaginya dengan port Gigabit Ethernet. Dengan tingkat transmisi hingga 2.488Gbps, satu port GPON dan satu port Gigabit Ethernet, TX-6610 menyediakan kemampuan forwarding berkinerja tinggi untuk memastikan pengalaman VoIP streaming HD yang lancar.
