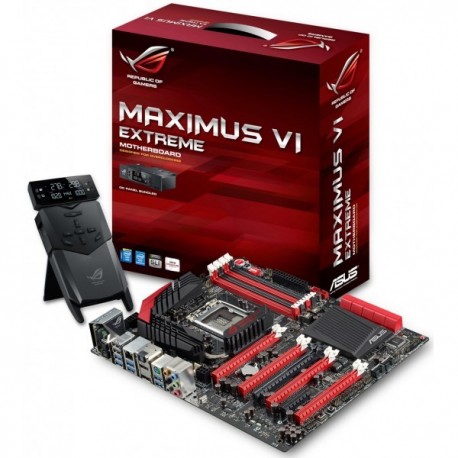

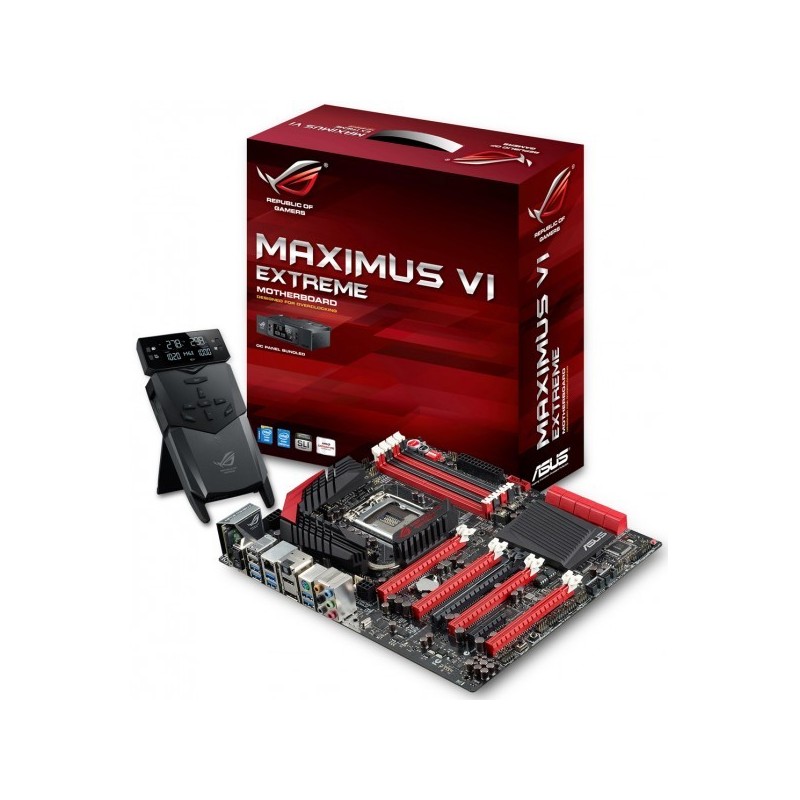

ASUS Maximus VI Extreme (LGA1150, Intel Z87, DDR3)

Spesifikasi ASUS Maximus VI Extreme (LGA1150, Intel Z87, DDR3)

CPU

• Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® Z87

Memory

• 4 x DIMM, Max. 32GB, DDR3 3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666
• (O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DisplayPort ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz *9
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

• Supports NVIDIA® 4-Way SLI™ Technology
• Supports AMD CrossFireX™ Technology

Expansion Slots

• 5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8) *1
• 1 x PCIe 2.0 x4
• 1 x mini-PCIe 2.0 x1 *2

Storage

Intel® Z87 chipset : *3

• 6 x SATA 6Gb/s port(s), red
• Support Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4

Intel® Z87 chipset :

• 1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
• Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards
• ASMedia® ASM1061 controller : *5
• 4 x SATA 6Gb/s port(s), red

LAN

• Intel® I217V, 1 x Gigabit LAN Controller(s)

Wireless Data Network

• Wi-Fi 802.11a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz

Bluetooth

• Bluetooth V4.0
• Bluetooth V3.0+HS

Audio

• Realtek® ALC1150 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

• Blu-ray audio layer Content Protection
• Optical S/PDIF out port(s) at back panel

USB Ports
Intel® Z87 chipset : *6

• 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® Z87 chipset : *7

• 8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)

ASMedia® USB 3.0 controller :

• 4 x USB 3.0 port(s) (4 at back panel, blue)

OC Panel

• 2.6 " LCM display
• EXTREME/NORMAL mode switch

EXTREME Mode for subzero OC benching:

• VGA Hotwire
• Subzero Sense
• Slow Mode
• Pause Switch
• VGA SMB header
• ProbeIt
• 4 x 4-pin extra fan connectors

NORMAL Mode for in-chassis usage:*8

• CPU Level Up OC button
• FanSpeed control button
• LCM backlight on/off button

I/O Ports:

• POWER：1 x SATA power connector
• ROG_EXT port：1 x 18-1 pin data connection port

ROG Exclusive Features

mPCIe Combo II (mPCIe/M.2 combo card)

ROG Connect :

• RC TweakIt
• RC Diagram
• RC Remote
• RC Poster

Extreme Engine Digi+ III :

• 8 + 2 phase power design
• NexFET™ Power Block MOSFET
• 60A BlackWing Chokes
• 10K Black Metallic Capacitors

ROG Extreme OC kit :

• Slow Mode
• LN2 Mode
• PCIe x16 Lane Switch
• EZ Plug
• ProbeIt

UEFI BIOS features :

• ROG BIOS Print
• GPU.DIMM Post
• Tweakers' Paradise
• ROG SSD Secure Erase
• ROG RAMDisk
• Extreme Tweaker
• Special Features

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :

• The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
• CPU Level Up
• ASUS Wi-Fi GO!

ASUS Exclusive Features :

• USB BIOS Flashback
• MemOK!
• AI Suite 3
• Ai Charger+
• USB Charger+
• USB 3.0 Boost
• Disk Unlocker

ASUS EZ DIY :

• ASUS O.C. Profile
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2

ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-Code
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• ASUS Q-Connector

Overclocking Protection :

• ASUS C.P.R.(CPU Parameter Recall)

Operating System Support

• Windows® 8.1
• Windows® 8
• Windows® 7

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 6 x USB 3.0 (blue)
• 2 x USB 2.0 (one port can be switched to ROG Connect)
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)
• 1 x Clear CMOS button(s)
• 1 x ROG Connect On/ Off switch(es)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 10 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 3 x Optional Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x 6-pin EZ_PLUG Power connector(s)
• 1 x 4-pin EZ_PLUG Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x Slow Mode switch(es)
• 10 x ProbeIt Measurement Points
• 3 x Thermal sensor connector(s)
• 1 x LN2 Mode header(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x BIOS Switch button(s)
• 1 x FastBoot switch(es)
• 1 x ROG extension (ROG_EXT) header(s)
• 1 x mPCIe Combo II connector(s)

Accessories

User's manual

• I/O Shield
• 10 x SATA 6Gb/s cable(s)
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x 3-Way SLI bridge(s)
• 1 x 4-Way SLI bridge(s)
• 1 x SLI bridge(s)
• 1 x CrossFire cable(s)
• 1 x Q-connector(s) (2 in 1)
• 1 x ROG Connect cable(s)
• 1 x 12 in 1 ROG Cable Label(s)
• 1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module
• 1 x ROG Magnet

OC Panel Kit:

• 1 x OC Panel(s)
• 1 x OC Panel 5.25-inch bay metal case
• 1 x OC Panel Cable(s)

BIOS

• 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS

Manageability

• WfM2.0, DMI2.7, WOL by PME, PXE

Support Disc

• Drivers
• ROG RAMDisk
• ROG CPU-Z
• ROG Mem TweakIt
• Kaspersky® Anti-Virus
• DAEMON Tools Pro Standard
• ASUS WebStorage
• ASUS Utilities

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
