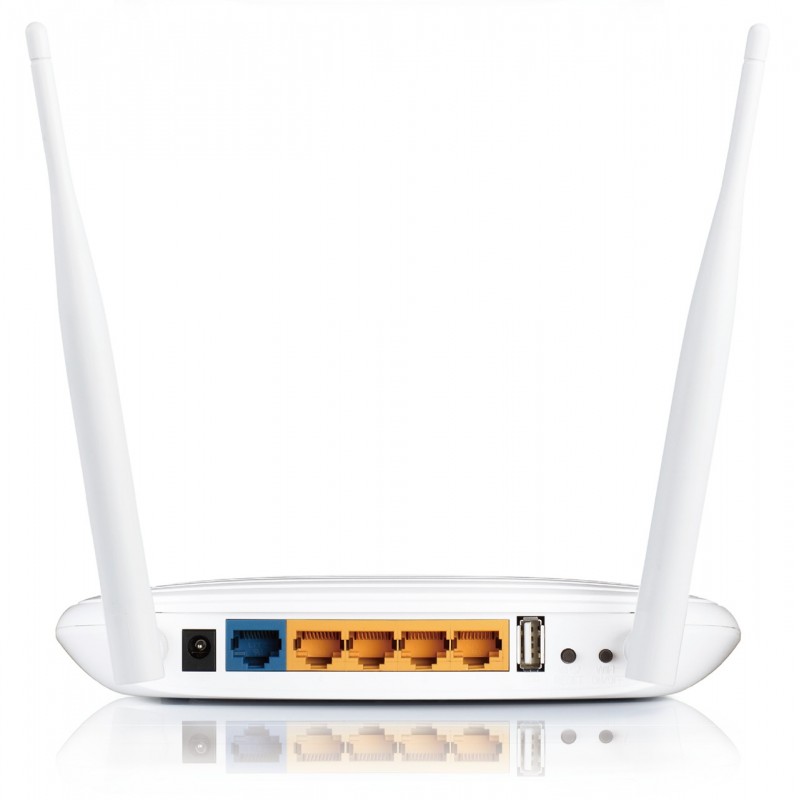

Tp-Link TL-WR842ND 300Mbps Multi Function Wireless N Router

Spesifikasi Produkn Tp-Link TL-WR842ND 300Mbps Multi Function Wireless N Router

HARDWARE FEATURES
Interface

• 4 10/100Mbps LAN Ports
• 1 10/100Mbps WAN Port
• 1 USB 2.0 Port

Button

• WPS/Reset Button
• WiFi On/Off Button

External Power Supply

• 12VDC / 1.0A

Wireless Standards

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Antenna

• 2*5dBi Detachable Omni Directional Antennas (RP-SMA)

Dimensions ( W x D x H )

• 7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm)

WIRELESS FEATURES
Frequency

• 2.4-2.4835GHz

Signal Rate

• Up to 300Mbps

EIRP

• <20dBm

Reception Sensitivity

• 270M: -68dBm@10% PER
• 130M: -68dBm@10% PER
• 108M: -68dBm@10% PER
• 54M: -68dBm@10% PER
• 11M: -85dBm@8% PER
• 6M: -88dBm@10% PER
• 1M: -90dBm@8% PER

Wireless Functions

• Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

• 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES
WAN Type

• Dynamic IP/Static IP/PPPoE/
• PPTP/L2TP/BigPond

DHCP

• Server, Client, DHCP Client List,
• Address Reservation

Quality of Service

• WMM, Bandwidth Control

Port Forwarding

• Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

• DynDns, Comexe, NO-IP

VPN Pass-Through

• PPTP, L2TP, IPSec(ESP Head)

Access Control

• Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

VPN

• 5 IPsec VPN Tunnels

Firewall Security

• DoS, SPI Firewall
• IP Address Filter/MAC Address Filter/Domain Filter
• IP and MAC Address Binding

USB Sharing

• Support Samba/FTP/Media Server/Printer Connection

Management

• Access Control
• Local Management
• Remote Management

OTHERS
Certification

• CE, FCC, RoHS

Package Contents

• TL-WR842ND
• 2 Detachable Omni Directional Antennas
• Power Supply Unit
• Resource CD
• RJ-45 Ethernet Cable
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing
