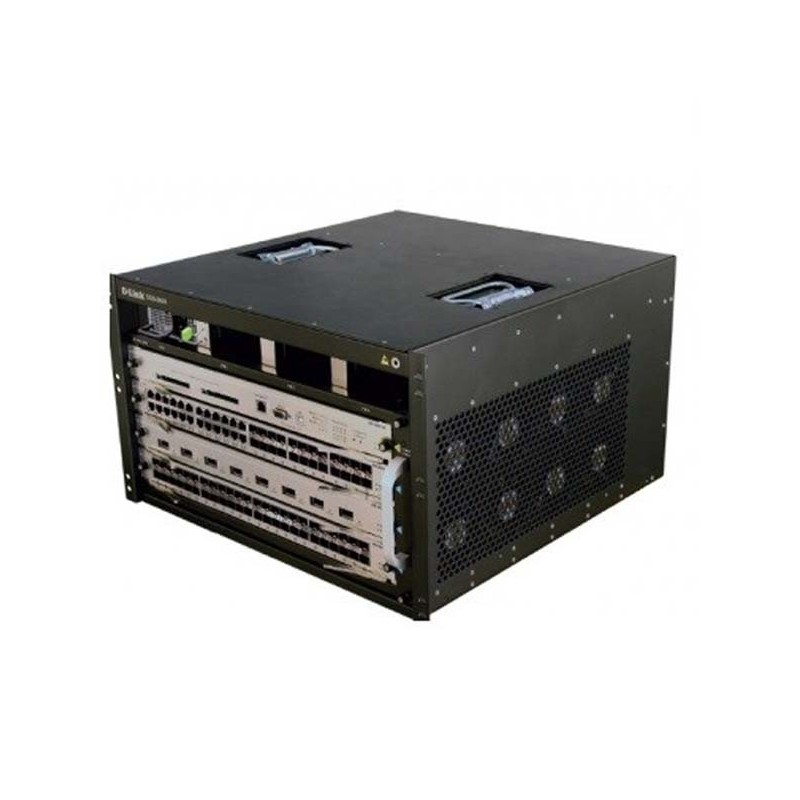

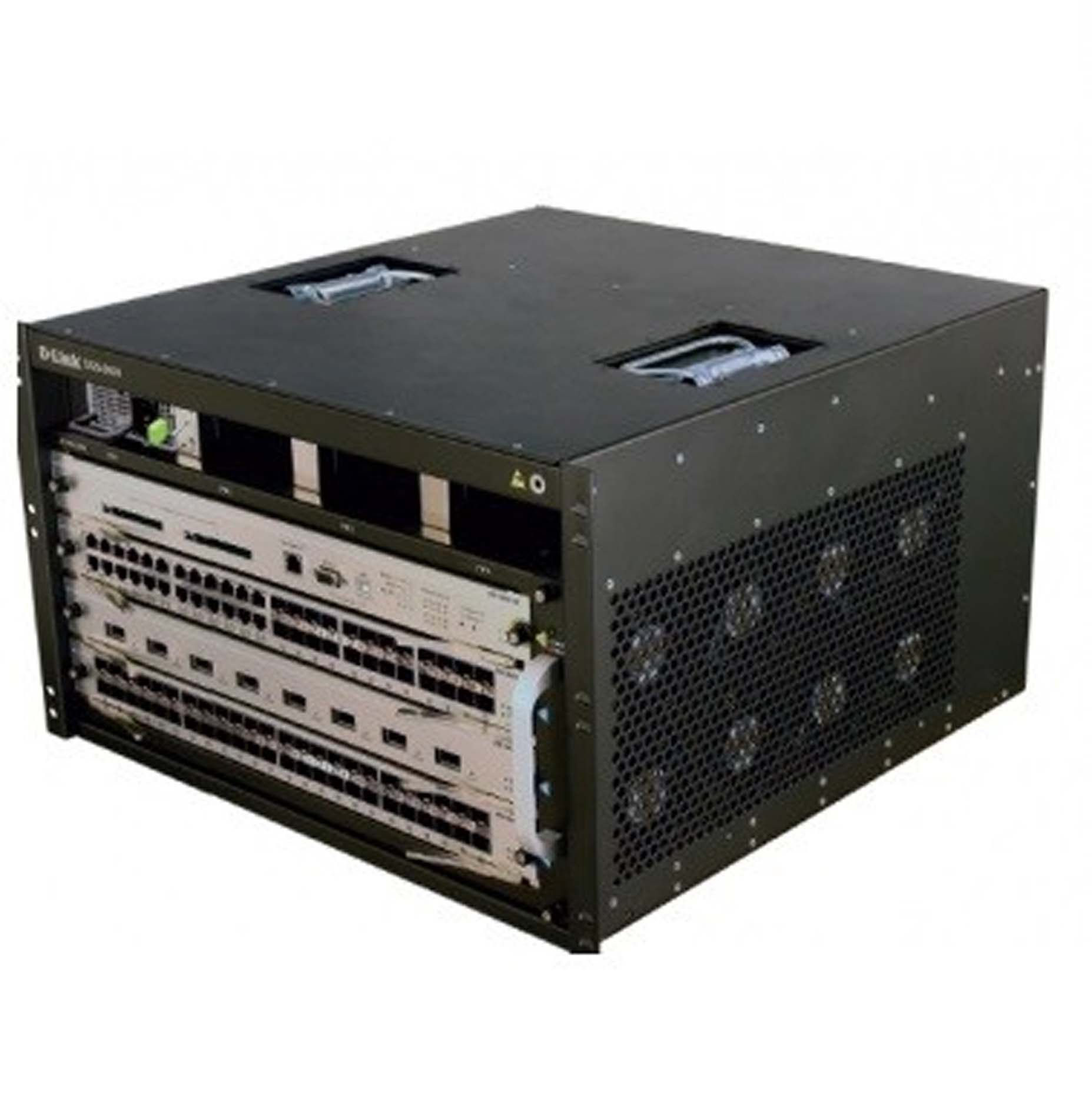

D-Link DGS-6604-SK-48P 4-Slot Chassis-Based Managed Switch Starter Kit

Kode Produk: 32318

Referensi EV0318/ET5/L10

Kondisi: Produk baru

D-Link DGS-6604-SK-48P 4-Slot Chassis-Based Managed Switch Starter Kit
4-Slot Chassis-Based Managed Switch Starter Kit with DGS-6604
DGS-6600-CM and DGS-6600-PWR
48-Port 10/100/1000BASE-T Module with PoE Function for DGS-6600 Series

Lebih detail

Kirim ke teman
Kirim ke teman
D-Link DGS-6604-SK-48P 4-Slot Chassis-Based Managed Switch Starter Kit

D-Link DGS-6604-SK-48P 4-Slot Chassis-Based Managed Switch Starter Kit

4-Slot Chassis-Based Managed Switch Starter Kit with DGS-6604

DGS-6600-CM and DGS-6600-PWR

48-Port 10/100/1000BASE-T Module with PoE Function for DGS-6600 Series
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi D-Link DGS-6604-SK-48P 4-Slot Chassis-Based Managed Switch Starter Kit

Chassis Slots	4 slots
Fixed Slots (for Control Modules)	1 slots
Open Slots (for Port Modules)	3 slots
Max. Switching Capacity	576 Gbps
Max. Packet Forwarding Rate	428.57 Mpps
10/100/1000Base-T Ports	144 ports
10/100/1000Base-T Ports with PoE	144 ports
Gigabit SFP Slots	144 ports
10-Gigabit SFP+ Slots1	48 ports
Superior Performance	Switch fabric with up to 1.152 Tbps, 857 Mpps packet forwarding, Distributed packet switching/routing,Intelligent line cards with on-board L2/L3/L4 switching controller
Flexible Modular Design	4-Slot and 8-Slot Chassis, Scalable expansion to 288 10/100/1000BASE-T, 288 PoE, 288 SFP, or 96 10-Gigabit ports1, Dual Control Modules / Multi Power Supplies
High Reliability	Up to 8 redundant load-sharing power modules, Hot-swappable line cards, Replaceable fan modules, 802.1D/1w/1s Spanning Tree, 802.1AX, 802.3ad link aggregation, VRRP & ERPS support
Security	L2/L3/L4 multi-layer access control, External RADIUS authentication support, SSH
L2 Features	MAC Address Table, Flow Control, Jumbo Frame up to 9,732 bytes, IGMP Snooping, 802.3ad Link Aggregation, Compliant with 802.1AX and 802.3ad
L3 Features	Max. 4K IP Interfaces, ARP Proxy, VRRP, IPv6 Tunneling, IPv6 Neighbor Discovery (ND), IPv6 Phase 2 Ready
VLAN	VLAN Group, Max. 4K VLAN, GVRP, 802.1Q Tagged VLAN, Port-based VLAN, 802.1v Protocol VLAN, Super VLAN , Double VLAN (Q-in-Q)
L3 Routing	12K hardware routing engines shared by IPv4/IPv6, 8K hardware L3 forwarding entries shared by IPv4/IPv6, 256 static routing entries for IPv4/IPv6, Policy-Based Routing, RIP v1/v2/ng OSPF
L3 Multicasting	Up to 4K hardware multicast groups, PIM-DM, PIM-DM v62, PIM-SM, PIM-SM v62, PIM Sparse-Dense Mode2, DVMRP v3
QoS	IEEE 802.1p CoS, 8 hardware Queues per Port, Queue Handling, Strict Priority, Support Following Actions for Flows, Committed Information Rate (CIR), min. granularity 64 Kbps
CoS Based on	Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, IPv4/v6 Address, DSCP, IPv6 Traffic Class
ACL Based on	802.1p Priority, VLAN ID, MAC Address, Ether Type, LLC, IPv4/v6 Address, DSCP
Security	SSH v2, Port Security up to 16 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, IP-MAC-Port binding, DoS Attack Prevention, ARP Spoofing Prevention2
MPLS	LDP, VPWS (VLL) , VPLS, MPLS/BGP L3 VPN2
AAA	802.1X Port-based Access Control, Web-based Access Control (WAC)2, MAC-based Access Control (MAC)2
Management	Web-based GUI, Command Line Interface (CLI), Telnet Server (Support IPv4/v6),Telnet Client, TFTP Client
MIB/IETF Standard	DLINK-MSTP MIB, DLINK-TC MIB, Draft-IETF-IDMR-DVMRP MIB-11,DVMR PSTD MIB, Draft-IETF-IDMR-DVMRP MIB-11,DVMR PSTD MIB, IEEE Std 802.3ad,IEEE8023-LAG MIB, RFC791 IP MIB, RFC792 ICMPv4 MIB,RFC793 TCP MIB, RFC826 ARP MIB
