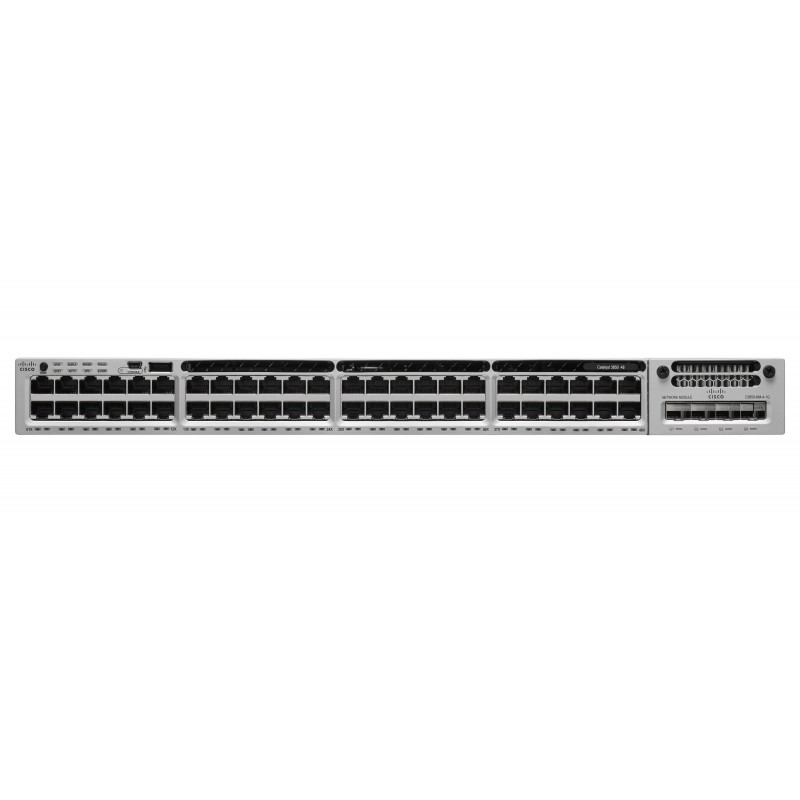

Cisco Catalyst 3850 Switch (WS-C3850-48T-L)

Kode Produk: 32336

Referensi AI0318

Kondisi: Produk baru

Cisco Catalyst 3850 48 Port Data LAN Base, 48 x 10/100/1000, Rack-mountable - 1U

Lebih detail

Kirim ke teman

Kirim ke teman

Cisco Catalyst 3850 Switch (WS-C3850-48T-L)
Cisco Catalyst 3850 48 Port Data LAN Base, 48 x 10/100/1000, Rack-mountable - 1U

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Cisco Catalyst 3850 Switch (WS-C3850-48T-L)

Product Code	WS-C3850-48T-L
Enclosure Type	1 RU
Feature Set	LAN Base
Network SFP uplink module selection	C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G
Ports	48 x 10/100/1000
Maximum stacking number	9
Stack bandwidth	480 Gbps
Forwarding Performance	130.95 Mpps
Switching Capacity	176 Gbps
RAM	4 G
Flash Memory	2 G
Network management Interface	● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Wireless	Number of AP per switch/stack : 100 Number of wireless clients per switch/stack : 2000 Total number of WLANs per switch : 64 Wireless bandwidth per switch : up to 40Gbps Supported Aironet AP series : 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity	Console ports : USB (Type-B), Ethernet (RJ-45) Expansion Slot(s) : 1 network module slot and 1 power redundant slot Network Modules Selection : ● C3850-NM-4-1G: 4 x 1G uplinks network module ● C3850-NM-4-10G: 4 x 10G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module Stacking cable ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length Stack Power Cable (recommended) ●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length Power supply : PWR-C1-350WAC Power Device : Power supply - redundant - plug-in module Power Redundancy : optional Voltage range (Auto) : 100V-240V Power Consumption of standalone(in Watts) : 127.24 (Max)

Berat dan ukuran Cisco Catalyst 3850 Switch (WS-C3850-48T-L)

Dimensions	44.5 cm x 44.5 cm x 4.45 cm
Weight	17.49 Kg

Ringkasan Produk Cisco Catalyst 3850 Switch (WS-C3850-48T-L)

Cisco Catalyst WS-C3850-48T-L adalah 48 port Ethernet switch stackable dengan gambar IOS basis LAN. Ini dirancang untuk lapisan akses dengan IOS yang dapat diupgrade yang menawarkan fleksibilitas untuk infrastruktur jaringan.
