Airlive WT-2000ARM Wireless Turbo G ADSL2 2 Modem Router

FEATURES

• CD based Auto Installation for Argentina, Austria, Australia, Belgium, Czech,
• Denmark, Egypt, France, Germany, Israel, Italy, Netherlands, Norway,
• Poland, Portugal, Saudi Arabia, Slovakia, Spain, Sweden, UK, and more...
• Wireless ADSL Router with built-in Modem
•  Up to 24Mbps downstream(ADSL2+) and 3.5Mbps upstream bandwidth
• (ADSL2+M)
•  Support ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT) and ITU-T G.992.2
• (G.LITE) Annex A/B ADSL standards
•  Support G.992.4 ADSL 2(12Mbps) and G.992.5 ADSL2+(24Mbps)
•  4 x 10/100Mbps switching ports with Auto MDI/MDIX functions
•  Web-based management
•  UPnP support
•  Annex A, B, I, M, L Support
•  WPA-PSK, WPA2-PSK support

Wireless Interface

• Ralink Turbo-G
• Compatible with 802.11g, 802.11b, Turbo-G, MIMO-G Devices.
• Turbo mode boost up to 125Mbps (Physical Layer speed)*
• 16 ~ 18dBm
• 128-bit and 64-bit WEP support
• WPA-PSK, WPA2-PSK support
• Wireless MAC Address filter (8-entries)

ADSL Data Mode

• G.992.2 (G.LITE) : Downstream and Upstream data rates up to 1.5Mbps and
• 512Kbps
• G.992.1 (G.DMT): Downstream and Upstream data rates up to 8Mbps and
• 1Mbps
• G.992.4 splitterless ADSL 2: 12Mbps
• G.992.5 ADSL 2+: 24Mbps
• ATM Protocol
• Annex A for ADSL over analogue phone line
• Annex B/UR2 for ADSL over ISDN line
• Annex I, Annex M, Annex L Support

WAN Mode Support

• PPP Over ATM (RFC2364) and PPP Over Ethernet (RFC 2516)
• DYNDNS.org support

LAN Mode Support

• Auto Encapsulation Detection
• Bridge/Routed Ethernet Over ATM (RFC1483)
• Classical Internet Protocol Over ATM (RFC 1577)
• Multi-VCS support up to 8 PVCs

Bridge Mode

• IEEE 802.1D
• Supports MAC Bridge control

Router Mode

• IP routing-RIPv2, Static routing, DHCP Server and Client
• NAT, ICMP

Firewall

• DMZ, Virtual Server
• SPI Firewall
• ACL Acess management

Security

• User authentication for PPP
• PAP (Password Authentication Protocol), CHAP (Challenge Authentication

Protocol

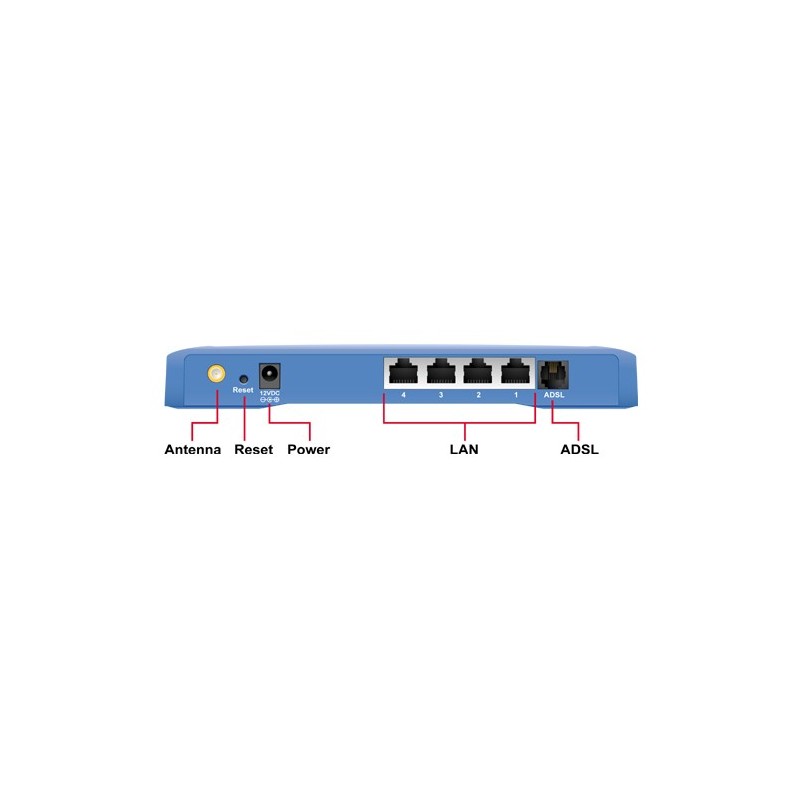

Hardware Interface

• 1 x RJ-11 ADSL Port
• 4 x 10/100Mbps switching ports
• 12Vdc power adapter

Certifications

• FCC Part 15/FCC Part 68
• CE/ EN60950 3rd Ed.

Product Weight

• 260g

Product Size (L x W x H mm)

• 206 x 106 x 23 mm
