ARGOX AS8520

Specification ARGOX AS8520

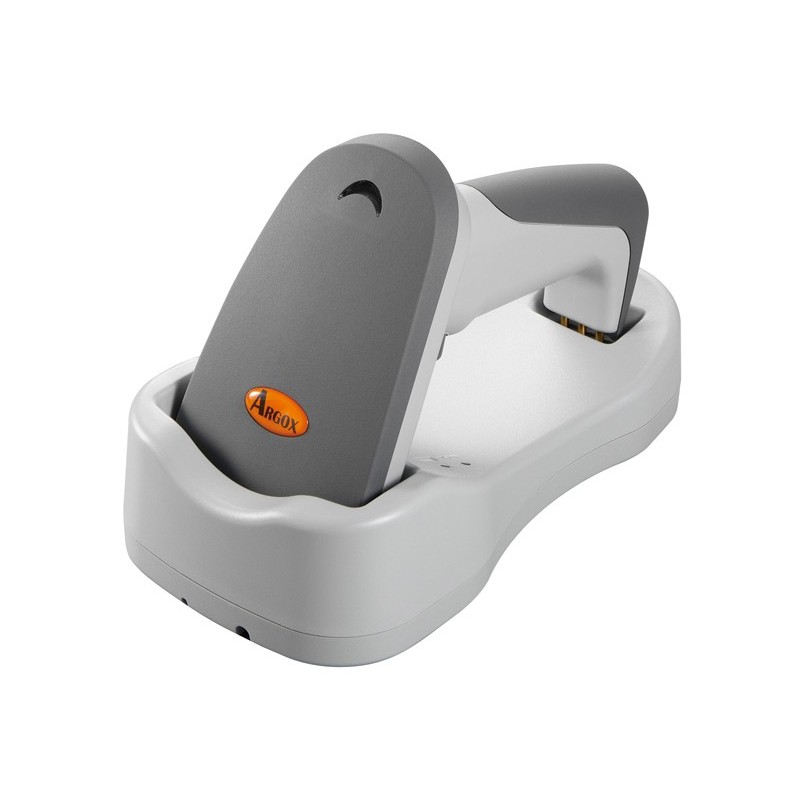

Imager Rentang AS-8520 lama Cordless menyediakan kinerja tinggi pemindaian dengan tingkat scan cepat (450 scan / detik) dan kedalaman unggul lapangan (sampai 40 inci pada 40-mil kode). Memanfaatkan unik ARGOX yang wireless-komunikasi teknologi, AS-8520 beroperasi dengan jangkauan transmisi 100-meter data.Mendampingi dengan pak tahan lama Li-ion baterai dan IP42 desain tingkat penyegelan, AS-8520 menawarkan kebebasan mobilitas barcode scan dan daya tahan yang luar biasa di berbagai aplikasi termasuk kantor bisnis untuk pengiriman / penerimaan, supermarket, gudang dan manufaktur.

● Light Weight, Ergonomic Design
● General Purpose reader - a single device    covering the broadest range of application
● Durable - without any moving parts to wear out              ● Operate with a 100-meter data transmission    range.
● Excellent Scanning Performance starting at    0.1mm (4 mil)
● Readable Under Sun Light
● Support GS1 databar (RSS) & CS ( Composite    Symbology) barcodes
● Reliability    (1) Trigger: 1,000,000 times   (2) Cable: 320,000 times (90°)   (3) Drop: 1.5 meter

Light source

630nm Visible Red LED

Optical system

2048 pixel CCD (charge-coupled device)

Depth of scan field

0-600 mm (Code39, PCS=90%, 20mil)

Scanning width

160mm

Scan speed

450 scan/sec

Resolution

0.1mm (4mil) Code39, PCS=90%, on contact

Print contrast

30% or more

Scanning angle

Front: 60° ,Rear: 60° ,Yaw: 75°

Decode capability

Autodiscriminates all standard barcodes; including GS1 databar

Other symbologies can be ordered optionally

Beeper operation

7 tones or no beep

Indicator

Green & Red Led

(2 more LED for 8520 cradle)

Length

164 mm

Width-handle

30 mm

Width-head

78 mm

Depth-handle

56 mm

Depth-head

35 mm

Weight

250g (battery included)

Radio range

100 meters

Radio frequency

Type: GFSK Modulation

Frequency: 2.4~2.483 GHZ

Power: 100mw ; Adaptive Frequency System

Connector type

RJ-45 phone jack connector

Case material

ABS plastic (over molded at contact pointed)

Input voltage

5 VDC ± 0.25V

Power - operating

900 mW

Power - standby

150 mW

Current - operating

225 mA @ 4.2 VDC

Current - standby

32 mA @ 4.2 VDC

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage

-20°C to 70°C (-4°F to 158°F)

(battery not included for 8510)

Humidity

10% to 90% relative humidity, non-condensing

Light level

Up to 70000 lux

Shock

1.5m drop onto concrete

(90cm for 8520 cradle)

Programming method

Manual (Reading special barcodes) DOS command through RS232, Windows configuration program

Contaminants

Seals to resist airborne particulate contaminants ( IP 42 )

Program upgrade

Enabled by build-in flash memory

Programmable characteristics

Code type selection, check digit selection, Decoding option, Transmitted character delay header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection Keyboard emulation type (intermessage delay, keyboard type and keyboard language) Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/ stop bits) Cordless type (special cordless transmission character settings for 8020CL & 8520)

Agency Listing

UL, FCC, CE, BSMI, NCC

Attention

*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual.
