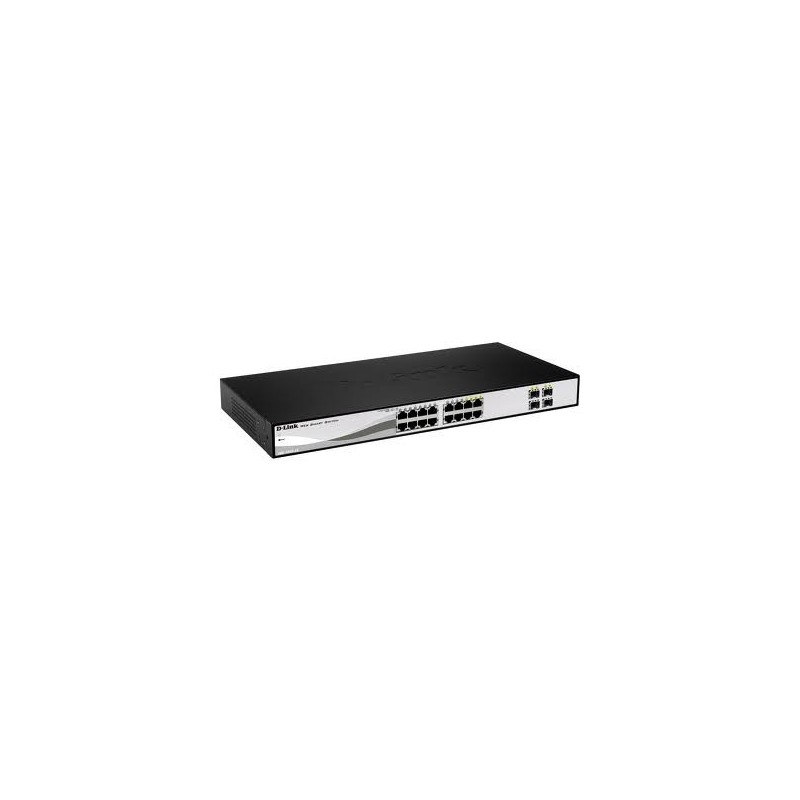

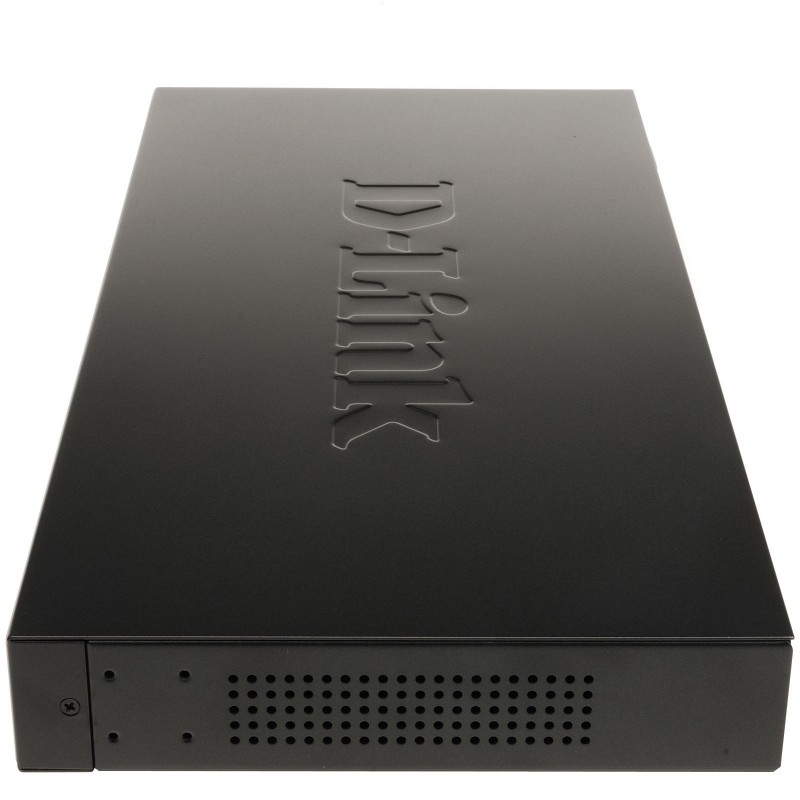

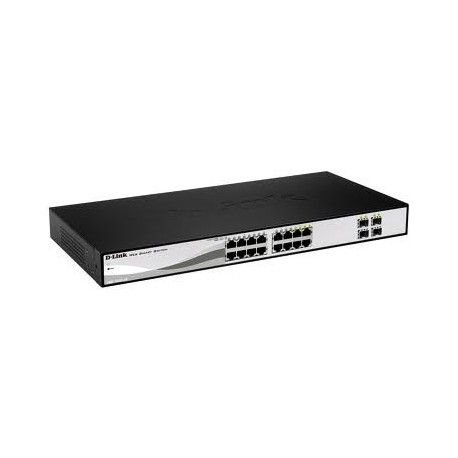

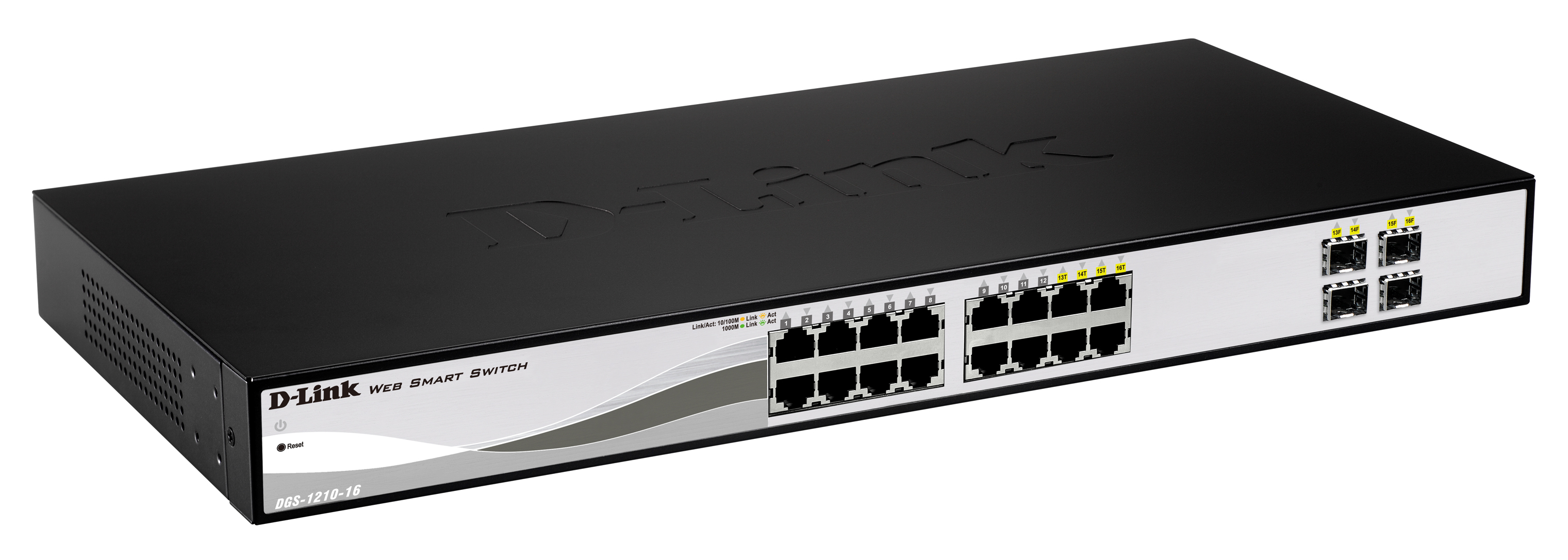

D-Link DGS-1210-16 (16-Port) Gigabit WebSmart Switch

Spesifikasi produkJual Harga D-LINK DGS-1210-16 (16-Port) Gigabit WebSmart Switch

Number of Ports

• 12 10/100/1000Mbps
•  4 combo 10/100/1000BASE-T/SFP

Network Cables

• UTP Cat.5, Cat.5e (100m max)
• EIA/TIA-568 100-ohm STP (100m max)

Full/Half Duplex

•  Full/half duplex for 10/100Mbps speeds
•  Full duplex for Gigabit speed

Media Interface Exchange

• Auto MDI/MDI-X adjustment for all twisted pair ports

Port Standards & Functions

•  IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
•  IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
•  IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
•  IEEE 802.3z Gigabit Ethernet (fiber)
•  ANSI/IEEE 802.3
•  Auto-negotiation
•  IEEE 802.3x Flow Control

Performance
Switching Capacity

• 32Gbps

Maximum 64 bytes packet forwarding rate

• 23.8Mpps

RAM Buffer

• 512KB per device

Transmission Method

• Store-and-forward

MAC Address Table

• 8K entries per device

MAC Address Update

• Up to 256 static MAC entries
• Enable/disable auto-learning of MAC addresses

Physical and Environmental
Maximum Power Consumption

• 17.4W

Standby Power Consumption

• 4.9W/110V, 5W/240V

Fan Quantity

• 0

Acoustics

•  0dBA

Heat Dissipation

• 59.23 BTU/hr

Dimensions

• 17.3in x 8.3in x 1.7in (440mm x 210mm x 44mm)
• 19-inch standard rack mounting width, 1U height

Weight

• 6.3 lbs (2.9kg)

MTBF

• 799,491 hours

AC Input

• 100 to 240 VAC 50/60 internal universal power supply

Operating Temperature

• 32° to 104°F (0° to 40°C)

Storage Temperature

• 14° to 158° F (-10° to 70° C)

Operating Humidity

• 10% to 95% Non-condensing

Storage Humidity

•  5% to 95% Non-condensing

Emission (EMI)

• FCC Class A, CE Class A, IC Class A, VCCI Class A, C-Tick

Diagnostic LEDs

• Power (per device)
• Fan Error (per device, optional)
• Link/Activity/Speed (per 10/100/1000Mbps port, per SFP port)
• Safety
•  cUL, LVD

PoE (DGS-1210-10P only)
PoE Standard

•  802.3af
•  Pre-standard 802.3at

PoE Capable Ports

• Port 1 to 8: 15.4w or 30w
• Max. 15.4w on 4 10/100/1000Mbps ports
• Max. 30w on 2 10/100/1000Mbps ports
• Max. 7.5w on 8 10/100/1000Mbps ports
• PoE Power Budget
• Maximum 78W

Software Features
L2 Features
MAC Address Table

• 8K

Flow Control

• 802.3x Flow Control
• HOL Blocking Prevention

Spanning Tree Protocol

• 802.1D STP
• 802.1w RSTP

IGMP Snooping

• IGMP v1/v2 Snooping
• Supports at least 64 static multicast addresses
• Supports IGMP Snooping Querier
• Supports 256 IGMP groups
• IGMP per VLAN

Loopback Detection

•  Auto disable port when loop is detected
• 802.3ad Link Aggregation
• DGS-1210-10P:  5 groups per device/8 ports per group
• DGS-1210-16/24/48:  8 groups per device/8 ports per group

Port Mirroring

• One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both

Cable Diagnostics

• Yes

Configurable Auto MDI/MDI-X

• Yes

Mulitcast Filterin

• Forwards all unregistered groups
• Filters all unregistered groups

VLAN

• 802.1Q
• 2003 Edition

VLAN Group

• Max 256 static VLAN groups, max 4094 VID

Management VLAN

• Supports 1 Management VLAN

Asymmetric VLAN

• Yes

Auto Voice VLAN

• Max. 10 user defined OUI, Max. 8 default OUI

QoS (Quality of Service)
802.1p Quality of Service

• 4 Queues per port

Queue Handling

• Strict, Weighted Round Robin (WRR)

CoS based on

• 802.1p Priority Queues, DSCP

Bandwidth Control

• Port-based (Ingress/Egress, min. granularity 64 Kb/s)

Access Control List
Maximum profiles

• 50

Maximum rules shared by profiles

• 240

ACL Actions

• Permit, Deny

Security
802.1X Port-based Access Control

• Default 802.1X forwarding

Port Security

• Supports up to 64 MAC addresses per port

Traffic Control

• Broadcast/Multicast/Unicast Storm Control

Static MAC

• Supports 256 Static MAC entries

D-Link Safeguard Engine

• Yes

DHCP Server Screening

• Yes

ARP Spoofing Prevention

• Max 64 entires

SSL

• Supports v1/v2/v3
• Support IPv4

Ringkasan produk Jual Harga D-LINK DGS-1210-16 (16-Port) Gigabit WebSmart Switch
