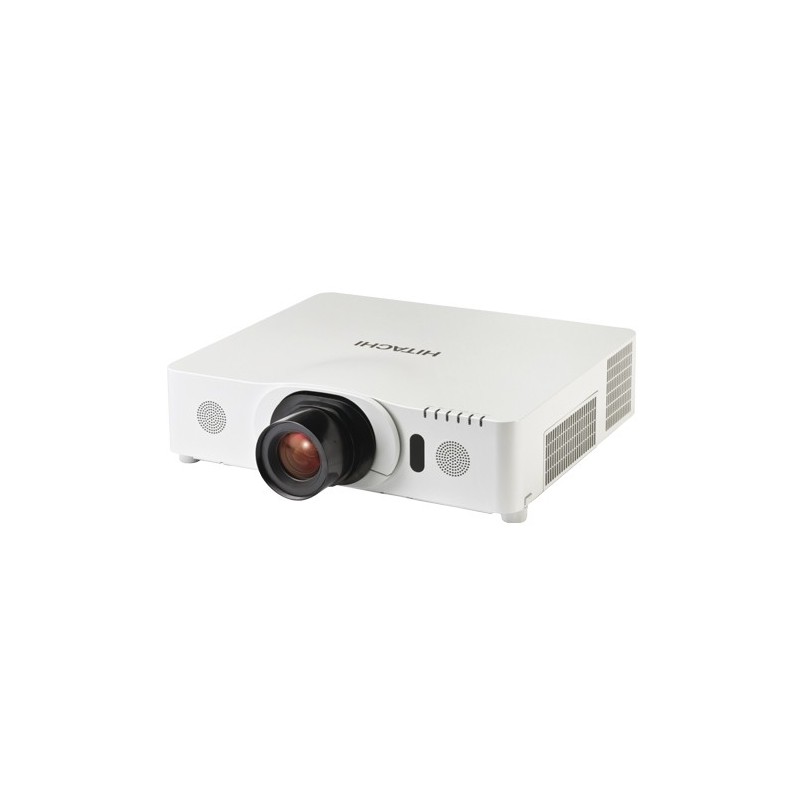

Hitachi CP-X8150 3LCD Technology XGA 5000 Lumens

Spesifikasi Produk Projector Hitachi CP-X8150 3LCD Technology XGA 5000 Lumens

OPTICAL
LCD Panel

• 0.63" (1.6cm) P-Si TFT x 3

Resolution

• XGA (1024x768)

Light Output (Brightness)

• 5000 ANSI Lumens (Normal Mode)
• 3400 ANSI Lumens (Eco Mode)

Colour Light Output (Colour Brightness)

• 5000 ANSI Lumens (Normal Mode)
• 3400 ANSI Lumens (Eco Mode)

Contrast Ratio

• 3000:1 (Presentation Mode)

Lens

• Powered Zoom x 1.5, Powered Focus

Lamp Wattage

• 245W UHP

Lamp Life

• 2500 Hours (Normal Mode)/4000 Hours (Eco Mode)*

Distance To Width Ratio (:1)

• 1.50 (WIDE), 2.2 (TELE)

Diagonal Display Size

• 30"~600" (76cm~1,524cm)

Number Of Colours

• 8 Bit/colour, 16.7M colours

Keystone

• Vertical 9:-1 shift, Normal at + 17.8°~11.9° projection angle
• *The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the
• manual. The majority of, but not all lamps should achieve this figure.

Speakers

• 2 x 8W (stereo)

CONNECTIONS
Digital Input

• 2 x HDMI (HDCP Compliant)

Computer Input

• 1 x 15-pin Mini D-sub
• 1 x BNC

Monitor Output

• 1 x 15-pin Mini D-sub

Video Input

• 1 x S-Video
• 1 x RCA Composite Video
• 3 x RCA Component Video

Audio Input

• 2 x Stereo Mini Jack
• 2 x RCA Jack(L/R)

Audio Output

• 2 x RCA Jack (L/R)

Control

• 1 x 9-pin D-Sub for RS232C Control

USB

• 2 x USB type A (PC-less presentation or optional wireless adaptor)
• 1 x USB type B (USB mouse control or USB display)

Wired Remote Control

• Input: 1 x Stereo Mini Jack
• Output: 1 x Stereo Mini Jack

Wired Network

• 1 x RJ-45 (10BASE-T/100BASE-TX)

Wireless Network

• IEEE802.11b/g/n (Optional USB wireless adaptor is required)

POWER
Power Supply

• AC100-120V/AC220-240V

Power Consumption/Standby

• 355W/<0.3W (AC220-240V)

OPTIONAL ACCESSORIES
Replacement Lamp

• DT01281

Filter Set

• MU06642

USB Wireless Adaptor

• USB-WL-11N

Solution Products

• TB-1 wireless interactive tablet, IM-1P interactive camera unit, MS-1WL wireless multi-functional
• switcher, MS-1 multi-functional switcher
• Optional LensesFL-701 - Motorized (focus only) - Fixed lens, Zoom x 1
• ML-703 - Motorized - Middle throw lens, Zoom x 2
• LL-704 - Motorized - Long throw lens, Zoom x 1.7
• UL-705 - Motorized - Ultra long throw lens, Zoom x 1.7

Berat dan ukuran Projector Hitachi CP-X8150 3LCD Technology XGA 5000 Lumens

Dimensions (W X H X D)

• • • 498 x 135 x 396mm (excluding feet and extrusions)

Weight

• • • Approximately 8.4Kg

Ringkasan produk Projector Hitachi CP-X8150 3LCD Technology XGA 5000 Lumens

Proyektor CP-X8150 ditujukan untuk fungsi sederhana dan user-friendly dalam lingkungan apapun. Dengan pergeseran lensa bermotor yang nyaman, dan posisi lensa sentral, gambar dapat disesuaikan mulus dan bergerak di sentuhan tombol. Plus, dengan berbagai lensa opsional, CP-X8150 dapat beradaptasi dengan lingkungan apapun, dari ruang pertemuan dan ruang kuliah, ke museum atau di mana saja yang membutuhkan solusi kreatif.
