NEC M420X Proyektor Ansi Lumens 4200 Xga

Spesifikasi Produk NEC M420X Proyektor Ansi Lumens 4200 Xga

Display

• 3 x 1.6 cm (0.63") p-Si LCD Panel with MLA

Native Resolution

• 1024 x 768 (XGA)

Contrast Ratio 1

• 2000:1

Brightness 1

• 4200 ANSI Lumen (approx. 75% in Eco Mode )

Lamp

• 265 W AC (195 W AC Eco Mode )

Lamp Life [hrs]

• 3000 (3500 Eco Mode )

Lens

• F= 1.7–2.1, f= 17.5–29 mm

Projection Factor

• 1.3 – 2.2 : 1

Projection Distance [m]

• 0.6 – 13.8

Screen Size (diagonal) [cm] / [inch]

• Minimum: 63.5 / 25"; Maximum: 762 / 300"

Zoom

• Manual

Focus Adjustment

• Manual

Frequency

• Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

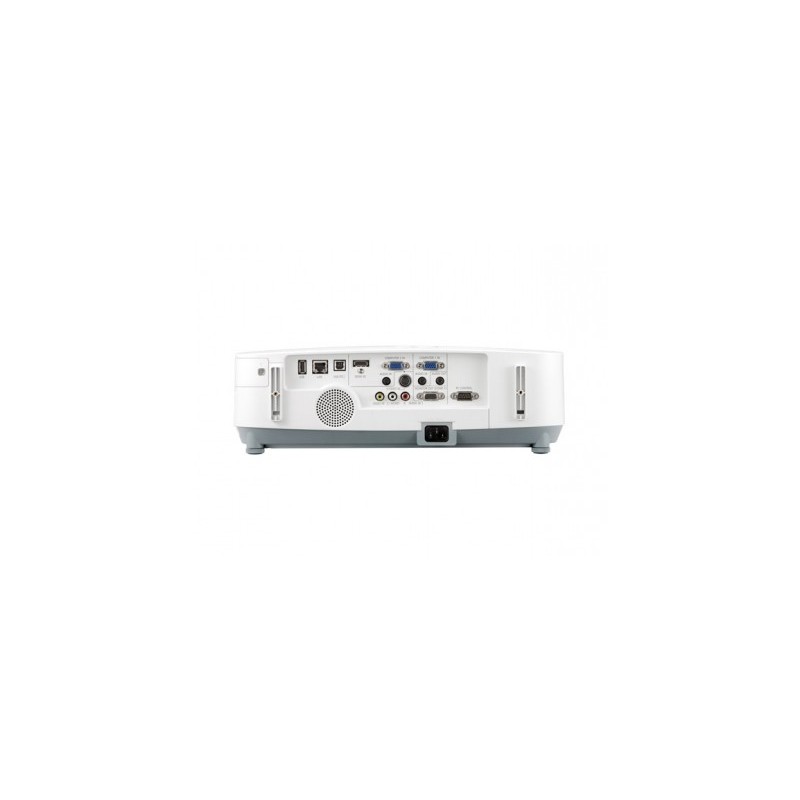

CONNECTIVITY
RGB (analog)

• Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
• Output: 1 x Mini D-sub 15 pin

HDMI™

• Input: 1 x HDMI™ (Deep Color, Lip sync)

Video

• Input: 1 x RCA

S-Video

• Input: 1 x Mini DIN 4-pin

Audio

• Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
• Output: 1 x 3.5 mm Stereo Mini Jack (variable)

PC Control

• Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN

• 1 x RJ45

USB

• 1 x Type B; 2 x Type A (USB 2.0 high speed)

Video Signals

• PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

ELECTRICAL
Power Supply

• 100-240 V AC; 50 - 60 Hz

Power Consumption [W]

• 343 (Normal) / 264 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]

• 5 to 40

Operating Humidity [%]

• 20 to 80

Storage Temperature [°C]

• -10 to 50

Storage Humidity [%]

• 20 to 80

ERGONOMICS
Safety and Ergonomics

• CE; ErP; TÜV GS; RoHS ; Gost-R

Speakers [W]

• 1 x 10 (mono)

WARRANTY
Projectors

• 3 years pan-European service

Lamp

• 6 months, max. 1000 hrs

Berat dan ukuran NEC M420X Proyektor Ansi Lumens 4200 Xga

Dimensions (W x H x D) [mm]

• • • 398 x 115 x 282 (without lens and feet)

Weight [kg]

• • • 3.6

Ringkasan produk NEC M420X Proyektor Ansi Lumens 4200 Xga

Dapatkan performa yang hebat sementara penyelamatan lingkungan. Fitur Eco canggih membantu untuk secara substansial menurunkan biaya operasi Anda tanpa mengorbankan kualitas dan fleksibilitas. M420X ini khususnya cocok untuk kelas besar dan ruang rapat besar.
