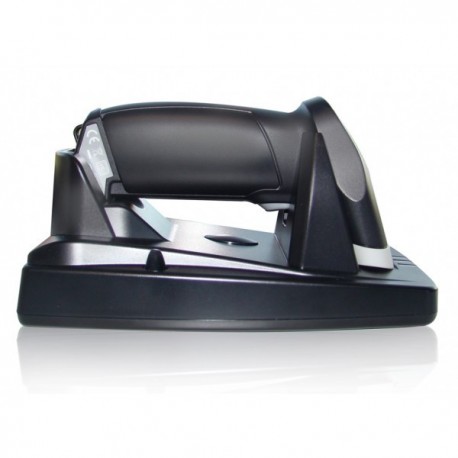

Opticon OPR-3301 Bluetooth + Batt Laser Scanner

Ringkasan Produk Opticon OPR-3301 Bluetooth + Batt Laser Scanner

• Pistol grip bentuk OPR3301 yang dirancang khusus untuk pemindaian ergonomis. Secara alami cocok di tangan Anda, memungkinkan penggunaan yang nyaman sepanjang hari. Pemindai berat sekitar 100 gram. Perumahan menyediakan operasi yang handal dan melindungi mesin dari ketinggian hingga 1,5 meter ke beton.
• Komunikasi nirkabel

• OPR3301 menggunakan protokol komunikasi yang tersedia secara luas dan dapat diandalkan wireless Bluetooth, dan memungkinkan data yang dipindai akan langsung dikirimkan ke perangkat yang menggunakan Bluetooth.
• Data yang dipindai disimpan di OPR3301 dalam kasus penerima Bluetooth bergerak di luar jangkauan atau sementara tidak tersedia. Hal ini untuk mencegah kehilangan data serta kerugian menapak waktu, memberikan kontribusi untuk kerja mobile yang terus-menerus.

Spesifikasi Produk Opticon OPR-3301 Bluetooth + Batt Laser Scanner

Memory

• FlashROM
• 1 MB
• RAM

• 1 MB SDRAM

Operating indicators

• Visual
• Large LED (red/green/blue)
• Non-visual

• Buzzer

Operating keys

• Entry options
• 1 scan key

Communication

• Bluetooth
• Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption

Power

• Current consumption
• 85mA (typical use), max. 120mA
• Rechargeable battery

• Lithium-Ion 3.7V 1100mAh
• Operating time

• Standby: Approx. 16 hours (with wireless connection).
• Reading: Approx. 15 hours (1 scan / 5 sec with wireless connection)
• Charging method

• Separate cradle CRD3301
• Battery charging time

• Approx. 3 hours (when charged with power supply).
• Approx. 6 hours (when charged with USB cable)

Barcode scanner Optics

• Light source
• 650 nm visible laser diode
• Scan method

• Bi-directional scanning
• Scan rate

• 100 scans/sec
• Trigger mode

• Manual, auto-trigger
• Reading pitch angle

• -35 to 0°, 0 to +35°
• Reading skew angle

• -50 to -8°, +8 to +50°
• Reading tilt angle

• -20 to 0°, 0 to +20°
• Curvature

• R>15 mm (EAN8), R>20 mm (EAN13)
• Min. resolution at PCS 0.9

• 0.127 mm / 5 mil
• Min. PCS value

• 0.45
• Depth of field

• 40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil), 20 - 350 / 0.79 - 13.78 in (0.5 mm / 20 mil), 20 - 200 / 0.79 - 7.87 in (res 0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil), 30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil), at PCS 0.9, Code 39

Supported Symbologies

• Barcode (1D)
• JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
• Postal code

• Chinese Post, Korean Postal Authority code
• 2D code

• Composite codes, MicroPDF417, PDF417

Durability

• Temperature in operation
• -5 to 50 °C / 23 to 122 °F
• Temperature in storage

• -20 to 60 °C / -4 to 140 °F
• Humidity in operation

• 5 - 95% (non-condensing)
• Humidity in storage

• 5 - 95% (non-condensing)
• Ambient light immunity

• Fluorescent 3,000 lx max, Direct sun 50,000 lx max
• Drop test

• 1.5 m / 5 ft drop onto concrete surface
• Vibration test

• 10 - 100 Hz with 2G for 1 hour
• Protection rateIP

• 42

Physical

• Dimensions (w x h x d)
• 56 x 132 x 113 mm / 2.20 x 5.20 x 4.45 in
• Weight body

• Ca. 110 g / 3.9 oz (incl. battery)
• Case

• ABS, Black or White

Regulatory & Safety

• Product compliance
• CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2
