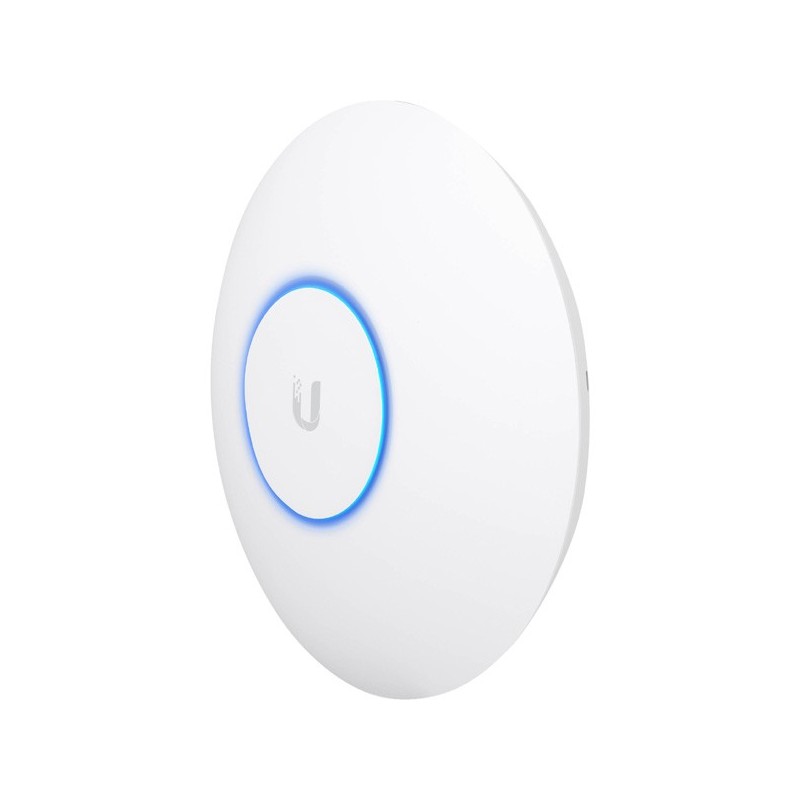

Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Kode Produk: 31307

Referensi WA/SC0617/WA

Kondisi: Produk baru

Dimensions: 220 x 48.1 mm
Environment: Indoor/Outdoor
2.4 GHz Radio Rate: 800 Mbps
5 GHz Radio Rate: 1733 Mbps
PoE Mod: 802.3at PoE+
Ports: (2) 10/100/1000 Ethernet
WiFi Users: 500+ Users

Lebih detail

Kirim ke teman
Kirim ke teman
Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point
Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Dimensions: 220 x 48.1 mm

Environment: Indoor/Outdoor

2.4 GHz Radio Rate: 800 Mbps

5 GHz Radio Rate: 1733 Mbps

PoE Mod: 802.3at PoE+

Ports: (2) 10/100/1000 Ethernet

WiFi Users: 500+ Users
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Networking Interface	(2) 10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	Power over Ethernet (48V), 802.3at PoE+ Supported
Supported Voltage Range	44 to 57VDC
Power Supply	48V, 0.5A PoE Gigabit Adapter*
Power Save	Supported
Maximum Power Consumption	17W
TX Power 2.4 GHz 5 GHz	6-25 dBm 6-25 dBm
Antennas 2.4 GHz 5 GHz	(2) Dual-Port, Dual-Polarity Antennas, 3 dBi each (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
Wi-Fi Standards	802.11 a/b/g/n/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
BSSID	Up to Four per Radio
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-10 to 70° C (14 to 158° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	500+
Supported Data Rates (Mbps)
Standard	Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Berat dan ukuran Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Dimensions	220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight With Mounting Kits	700 g (1.54 lb) 830 g (1.83 lb)

Isi Paket Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

1xUbiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Ringkasan Produk Ubiquiti UAP-AC-HD 802.11ac Wave 2 Enterprise Wi-Fi Access Point

Aplikasi High-Density Didukung oleh Teknologi MU-MIMO
Teknologi 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) memungkinkan Wave 2 AP berkomunikasi dengan beberapa klien secara bersamaan - meningkatkan throughput pengguna secara signifikan dan pengalaman pengguna secara keseluruhan.

Akselerasi Hardware Radio
2.4 GHz independen dan 5 GHz hardware khusus offload untuk memaksimalkan throughput multi-user dan mengurangi latency

Akselerasi Hardware CPU
Aliran hardware khusus untuk QoS, Kontrol Tamu, dan Manajemen Klien

Dioptimalkan untuk MU-MIMO
Sistem Antena Dioptimalkan untuk Wave 802.11ac 2 MU-MIMO Beamforming

Beamforming
Data dikirim dan diterima menggunakan beberapa antena untuk meningkatkan throughput dan range.

Fitur Lanjutan di UniFi Controller
UniFi dengan cepat berkembang ke solusi Software Defined Networking (SDN) penuh dengan integrasi switching berkinerja tinggi, gateway, dan lainnya.
