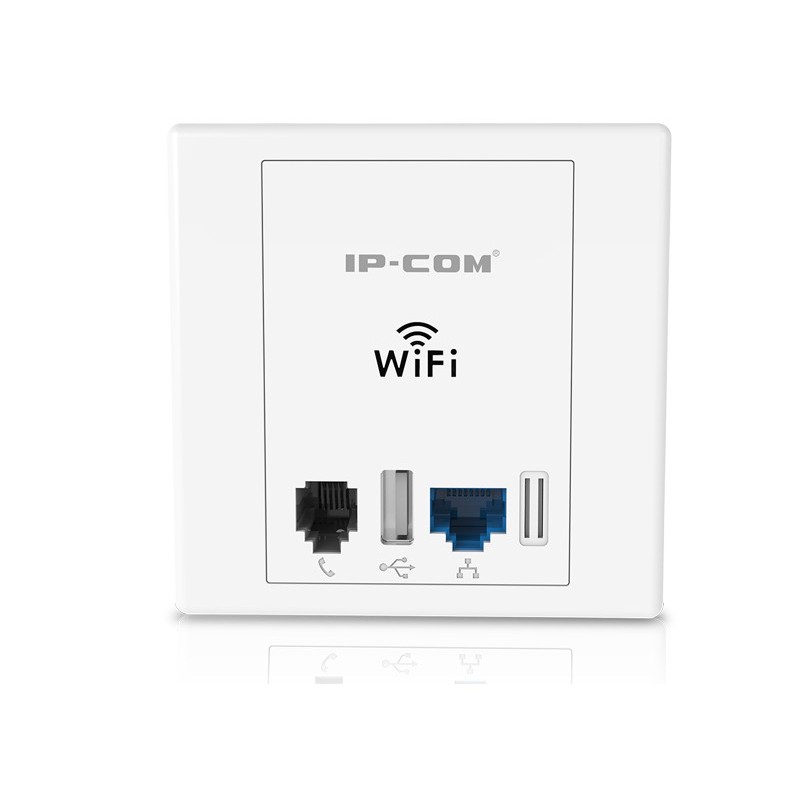

IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point

Kode Produk: 30862

Referensi Out Of Stock

Kondisi: Produk baru

Interfaces

2*FE LAN ports
1*RJ11 Telephone port
1*USBv2.0(Ipad not recommended)
Out Of Stock

Lebih detail

Kirim ke teman
Kirim ke teman
IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point
Interfaces

2*FE LAN ports

1*RJ11 Telephone port

1*USBv2.0(Ipad not recommended)

Out Of Stock
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point

Interfaces	2FE LAN ports 1RJ11 Telephone port 1*USBv2.0(Ipad not recommended)
Antennas	2*3dbi omni-directional antennas
Button	1*Reset
Power Method	802.3af PoE
Maximum Power Consumption	9W
LED indicator	WiFi
Compliant Standards	IEEE 802.11n/g/b
Frequency Range	2.4GHz-2.483GHz
Maximum wireless speed	300Mbps
Maximum Transmit Power	18dbm
Wireless Basic Settings	Multiple SSID Enable/Disable Wireless Radio Wireless Client isolation Wireless Access Control Wireless Client list SSID-to-VLAN Tagging
Wireless Security Settings	64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2
Working mode	AP
Maximum Concurrent Clients	12
Receiver sensitivity	b mode：1M -92dBm@8% 11M -87dBm@8% PER； g mode：54M -72dBm@8% PER； n mode：72.2M -68dBm@8% PER； 150M -68dBm@8% PER
Modulation	OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps DSSS : DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps MIMO-OFDM : MCS 0-23
LAN Settings	Static IP Dynamic IP
DHCP Server	DHCP Server Clients list
VPN Pass-Through	PPTP L2TP
Management Tool	SNMP(v1&v2c) Reboot System Log Firmware update Time&Date Setting Backup/Restore Configuration Username Managerment Diagnostic Tool(ping)
Operating Temperature	-10℃~45℃
Storage Temperature	-30℃~70℃
Operating Humidity	10%~90% non-condensing
Storage Humidity	10%~90% non-condensing
Default Settings	IP Address: 192.168.0.254 Login Username:admin Login Password:admin

Berat dan ukuran IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point

Dimensions	868635mm
Weight	104.6g(173.6g include the package)

Isi Paket IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point

Package Contents	300M Wall Jack Fat Access Point W30AP Quick Installation Guide Ethernet cable Two Screws Resource CD

Ringkasan Produk IP-COM W30AP In-Wall 300M Wall Jack Fat Access Point

W30AP adalah yang terbaru pelat dinding generasi Wi-Fi akses poin (AP) yang dapat dipasang di setiap piring dinding 86mm tanpa melanggar dekorasi yang ada dan mudah dikelola. Hal ini juga cocok untuk asrama universitas, bangsal rumah sakit, kamar hotel dan situs lainnya dengan kamar padat dibagi. Ini membantu mengurangi masalah kualitas sinyal yang disebabkan oleh penyebaran AP tradisional di situs tersebut, dan sangat mengurangi biaya modal dan expensses operasi dalam menjalankan situs tersebut.
