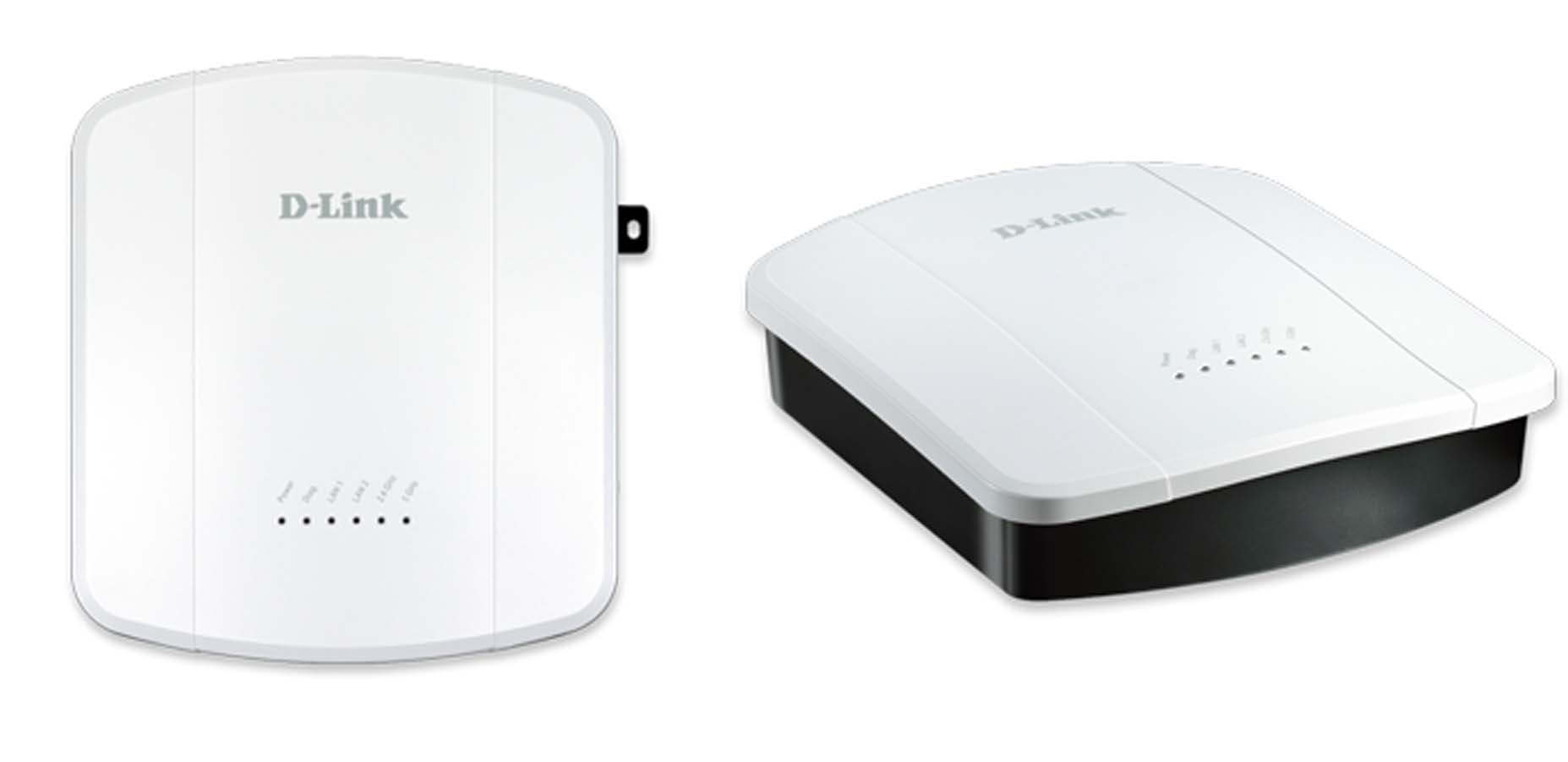

Dlink DWL-8610AP/ESG Unified Wireless AC1750 Dual-Band Access Point

Spesifikasi Dlink DWL-8610AP/ESG Unified Wireless AC1750 Dual-Band Access Point

Features

High-performance Connectivity

• IEEE 802.11ac wireless1
• Up to 1300+450 Mbps1
• 2 x Gigabit LAN ports

Made for Business-class Environments

• Simultaneous dual-band connectivity for increased network capacity
• AC SmartBeam™ technology
• Bandsteering for efficient traffic management
• Console port for debugging

Flexible & Scalable

• Flexible deployment, stand-alone or centrally managed by a wireless controller
• Self-configuring cluster enables easier provisioning. Up to 16 DWL-8610APs may form a self-configuring cluster

Trusted Security

• WPA/WPA2 Personal
• WPA/WPA2 Enterprise
• MAC address filtering
• Rogue AP detection

Convenient Installation

• Can be easily mounted on a wall or ceiling
• 802.3at Power Over Ethernet (PoE) enables installation in hard-to-reach locations
• UL2043 certified Plenum rated housing to comply with fire regulations



Technical Specifications

General

Device Interface

• 802.11ac/b/g/n
• RJ45 console port
• 2 Gigabit LAN Port (one port supporting 802.3at PoE)

LEDs

• Power
• LAN 1
• LAN 2
• Diagnostics
• 2.4 GHz
• 5 GHz

Wireless Frequency

• 2.4 GHz band: 2.4 GHz-2.4835 GHz
• 5 GHz band: 4.9 GHz-5.85 GHz

Data Transfer Rate

• 802.11ac: 433 Mbps-1300 Mbps
• 802.11n: 6.5 Mbps-450 Mbps
• 802.11g: 54, 48, 36, 24, 12, 9, and 6 Mbps
• 802.11b: 11, 5.5, 2, and 1 Mbps

Operation Channel

• 2.4 GHz: 13 channels
• 5 GHz: 19 non-overlapping channels

Antenna

• Internal omni-directional antennas
• 6.5 dBi for 5 GHz, 5 dBi or 2.4 GHz

Functionality

Security

• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Internal RADIUS server

Network Management

• Operational modes
  • Standalone
  • AP Array
  • Managed (with DWC-1000, DWS-4026 or DWS-3160)
• Web-based user interface (HTTP/HTTPS)
• Command line interface via
  • RJ45 serial console
• Telnet/SSH
• SNMP

Physical

Dimensions

• 200 x 221 x 55 mm

Weight

• 875.8 grams

Power Adapter

• 12 V DC, 2 A (power adapter not included)

Max Power Consumption

• 12.95 W

Power over Ethernet

• 802.3at PoE+

Enclosure

• Bottom cover – metal
• Top cover – plastic
• UL2043 certified

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Non-operating Temperature -20~65°C

Humidity

• Operating: 10% to 90% non-condensing

Certifications

• CE
• FCC
• IC
• cUL
• LVD
• UL2043
• C-Tick
• VCCI
• NCC
• Wi-Fi
• TELEC
• EN 60601-1-2

Ringkasan Produk Dlink DWL-8610AP/ESG Unified Wireless AC1750 Dual-Band Access Point

DWL-8610AP adalah state of the art, Unified Wireless AC1750 Access Point, memungkinkan bisnis dari semua ukuran menciptakan jaringan nirkabel tercepat mungkin. Dengan PoE yang tergabung sebagai standar dan desain industri yang bersih, DWL-8610AP dapat digunakan secara luas di mana pun.
