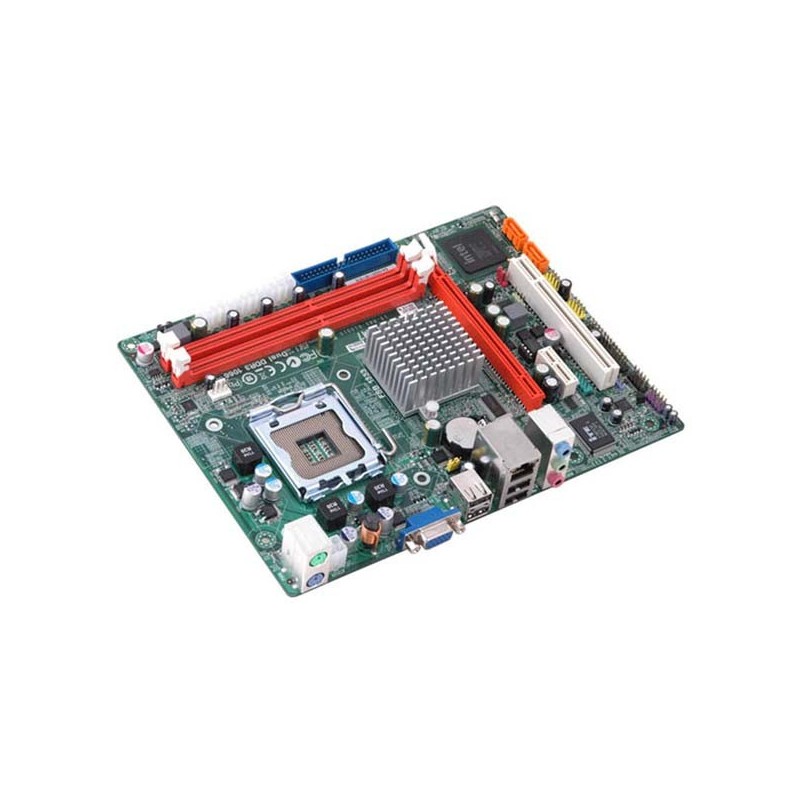

ECS G41T-M7 LGA775 Intel G41 DDR3

Spesifikasi produk Motherboard Intel ECS G41T-M7 LGA775 Intel G41 DDR3

Model
Brand

• ECS

Model

• G41T-M7

Supported CPU
CPU Socket Type

• LGA 775

CPU Type

• Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron

FSB

• 1333/1066MHz

Chipsets
Chipset

• Intel G41

South Bridge

• Intel ICH7

Memory

Number of Memory Slots

• 2×240pin

Memory Standard

• DDR3 1333/1066/800
• *Through BIOS setting, this motherboard can over clock to DDR3 1220 MHz when using DDR3 1333 SDRAM with FSB 1066 CPU. (Please update the latest BIOS and refer to the CPU support list/ Memory support list)

Maximum Memory Supported

• 8GB

Channel Supported

• Dual Channel

Expansion Slots

PCI Express x16

• 1

PCI Express x1

• 1

PCI Slots

• 1

Storage Devices
PATA

• 1 x ATA100 2 Dev. Max

SATA 3Gb/s

• 2

Onboard Video
Onboard Video Chipset

• Intel GMA X4500

Onboard Audio
Audio Chipset

• VIA VT1705

Audio Channels

• 6 Channels

Onboard LAN
LAN Chipset

• Realtek 8103EL

Max LAN Speed

• 10/100Mbps

Rear Panel Ports
PS/2

• 2

Video Ports

• D-Sub

USB 1.1/2.0

• 4 x USB 2.0

Audio Ports

• 3 Ports

Internal I/O Connectors
Onboard USB

• 4 x USB 2.0

Other Connectors

• 1 x 24-pin ATX Power Supply connector
• 1 x 4pin CPU_FAN connectors
• 1 x 3-pin SYS_FAN connector
• 1 x IDE connector
• 1 x Front panel switch/LED header
• 1 x Speaker header
• 1 x Front panel audio header
• 1 x SPDIF out header
• 1 x CLR COMS
• 1 x Serial port (COM1)
• 1 x 4-pin power connector for VGA card
• 1 x COM header
• 1 x Parallel Header
• 1 x Chassis intrusion header

Physical Spec
Form Factor

• Micro ATX

Dimensions (W x L)

• 8.86" x 6.7"

Power Pin

• 24 Pin

Features
Features

• ECS G41T-M7 motherboard supports Intel Core 2 Quad processors and dual-channel DDR3 upgraded bandwidth
• G41T-M7 features Intel G41 and ICH7 chipsets, by supporting Intel 45nm Core 2 Quad and Core 2 Duo processors, it provides impressive performance. Additionally, G41T-M7 is equipped with 2 DIMM DDR3 up to 8GB, which means good scalability and enhances the efficiency appreciably. With its ultra small form factor of 225x170mm, ECS G41T-M7 brings outstanding performance without high price tag.
