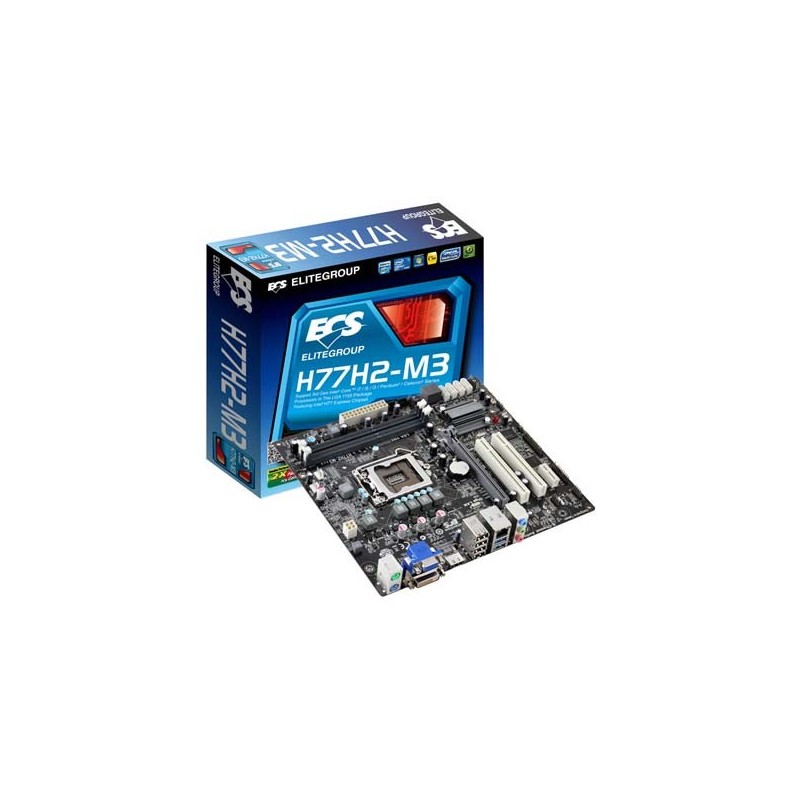

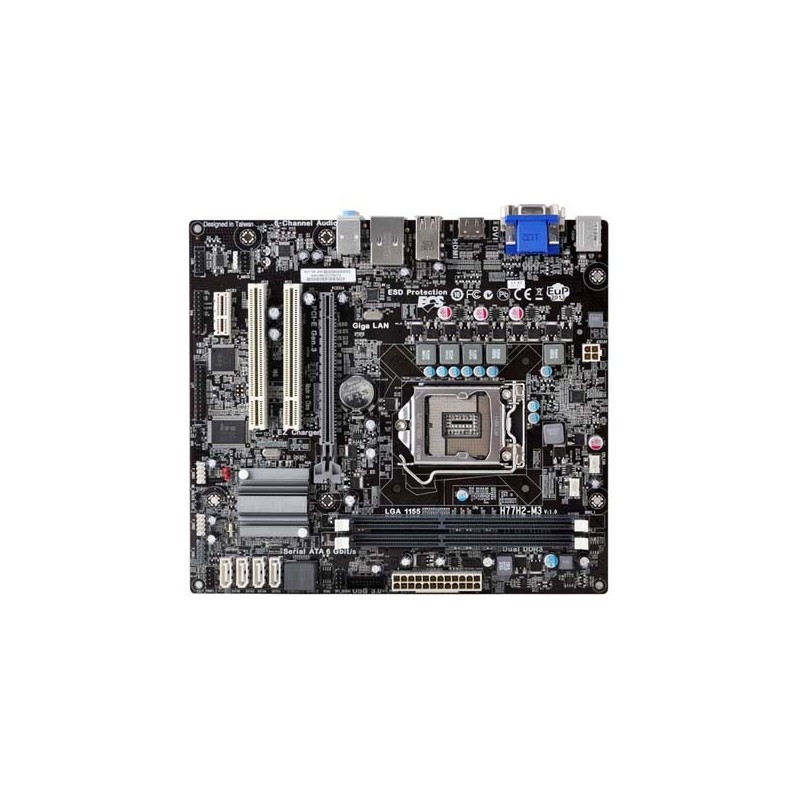

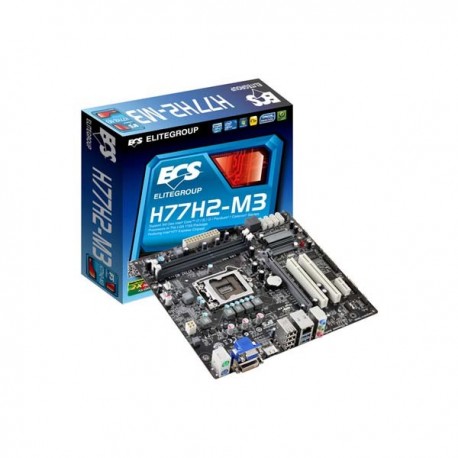

ECS H77H2-M3 LGA 1155 Intel H77 DDR3 USB3 SATA3

Spesifikasi produk Motherboard Intel ECS H77H2-M3 LGA 1155 Intel H77 DDR3 USB3 SATA3

CPU

•  DMI 5.0GT/s
•  VRD 12.0
•  Solid Capacitor for CPU side
•  Supports Intel® Hyper-Threading Technology
•  Intel® K Series Unlock CPU Support
•  Please refer to CPU support list for details

CHIPSET

•  Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog

GRAPHICS

•  Supports DirectX® 11
•  Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
•     Insider™
•  Supports HDMI 1.4a & Premium Audio
•  Supports OpenGL 3.1(Intel 3rd gen CPU)
•  Supports OpenCL 1.1(Intel 3rd gen CPU)
•  Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

•  2 X 240-pin DDR3 DIMM socket
•  Support up to 16 GB*
•  * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
•  Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

•  1 X PCI Express X 1 Gen 2.0 slot(s)
•  2 X PCI slot(s)

Storage

•  2 X Serial ATAIII 6Gb/s
•  4 X Serial ATAII 3Gb/s
•  RAID0, RAID1,RAID5, RAID 10 configuration
•  Supports Intel® Rapid Storage Technology
•  Supports NCQ, AHCI and "Hot Plug" functions

Audio

•  Compliant with HD audio specification
•  Realtek ALC662
• Realtek ALC662 6-channel High Definition audio CODEC
• Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
• Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
• Emulation of 26 sound environments to enhance gaming experience
• Voice Cancellation and Key Shifting in Karaoke mode
• Compatible with Direct Sound 3D™, A3D™, I3DL2

LAN

•  Wake-On-LAN

USB

•  4 X USB3.0 port(s) up to 5Gb/s
• Back Panel 2 port(s)
• Onboard 2 port(s)
•  10 X USB2.0 port(s) Up to 480 Mb/s
•  Back Panel 4 port(s)
• Onboard 6 port(s)
•  ECS EZ Charger (Gray USB header)

REAR PANEL I/O

•  1 X Audio port (Line Out/Line In/Mic In)
•  1 X RJ-45 port
•  1 X HDMI port(s)
•  1 X DVI-D port(s)
•  1 X D-Sub (VGA) port(s)
•  2 X USB3.0 port(s)
•  4 X USB2.0 port(s)

CONNECTORS & HEADERS

•  1 X 4-pin 12V Power connector
•  1 X 4-pin CPU_FAN connector
•  1 X 4-pin SYS_FAN connector
•  1 X Front Panel switch/LED header
•  1 X Front panel audio header
•  1 X Speaker header
•  1 X USB 3.0 header
•  Support additional 2 USB ports
•  3 X USB 2.0 header
•  Support additional 6 USB ports
•  Support EZ charger (gray color)
•  1 X S/PDIF out header
•  2 X SATA III 6Gb/s connector(s)
•  4 X SATA II 3Gb/s connector(s)
•  1 X Serial port header (COM)
•  1 X Parallel port header (LPT)
•  1 X TPM header
•  1 X ME_UNLOCK header
•  1 X Chassis intrusion header

SYSTEM BIOS

•  Supports M.I.B III Utility
•  ACPI & DMI
•  F7 hot key for boot up devices option
•  Graphic OC Support
•  Triple Display
•  Support ECS EZ BIOS
•  Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
•  Multi-Language BIOS
•  Audio, LAN, can be disabled in BIOS
•  Supports PgUp clear CMOS Hotkey
•  Dual-Monitor function
•  * Adjustable CPU Voltage
•  * Memory Voltage Adjustable

FORM FACTOR

•   244mm(W)*220mm(H)

OS Support
 Windows XP 32-bit

•  Windows Vista 32-bit
•  Windows Vista 64-bit
•  Windows 7 32-bit
•  Windows 7 64-bit
•  Windows 8 32-bit
•  Windows 8 64-bit

Certifications

•  ErP/EuP Certification
•  WHQL Certification
•  WHCK Certification

Bundled Software

•  Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
