Sony Vpl-Ex100 Ansi Lumens 2300 Xga

HARGA SONY VPL-EX100, HARGA VPL-EX100, PROJEKTOR SONY VPL-EX100, SONY VPL-EX100 HARGA, SPESIFIKASI SONY VPL-EX100, JUAL SONY VPL-EX100, SONY VPL-EX100 SECOND, VPL-EX100 SONY HARGA

Spesifikasi Projector SONY VPL-EX100
Optical

• Projection System 3 LCD panels, 1 lens projector system

Lamp

• UHP lamp, 210W

Light Output

• 2300 lm (Lamp mode: high) / 1800 lm (Lamp mode: Standard) / 1500 lm (Lamp mode: low)

Screen Coverage

• 30 (76.2 cm) to 300 (762 cm) (measured diagonally)

Panel

• 0.63, BrightEra, Aspect ratio: 4:3

Projector Lens

• Approx. 1.3 times zoom lens, manual, throw ratio 1.4-1.82

Keystone Correction Range

• Max. +/- 30 degrees vertically

Throwing Distance

• 80 (203.2 cm) Screen 2.27 to 2.93m 100 (254 cm) Screen 2.84 to 3.67m 120 (304.8 cm) Screen 3.42 to 4.42m 150 (381 cm) Screen 4.28 to 5.53m 200 (508 cm) Screen 5.71 to 7.38m

Signals

• Contrast Ratio
• 2200:1

Resolution
Panel display:

• 1024x768 dots

Colour System

• NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Display Resolution Video input

• NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/60p, 1080/50p

Display Resolution Computer input

• Max. display (resizing): 1600x1200 dots

Displayable scanning frequency

• fH: 14 KHz to 93 KHz, fV: 47 Hz to 93Hz

Acceptable Input Signals Video

• Composite Video, Y/C Video, NTSC 60Hz, PAL / SECAM 50Hz, DTV (480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i)

General
Dimension (WxHxD)

• 313.4x129.6x278.3 mm

Mass

• 3.2 Kg

Power Requirement

• AC 100V to 240V, 3.3A to 1.3A, 50/60 Hz

Operating Temperature

• 0˚C to 40˚C

Operating Humidity

• 35% to 85% (no condensation)

Storage Temperature

• (-20˚C to +60˚C)

Storage Humidity

• 10% to 90%

Speaker

• 1W x 1 (monoaural)

Power Consumption

• (AC220V to 240V, AC100V to 120V) (High / Standard / Low) 290W / 170W / 140W, 300W /  265W / 235W

Power Consumption Standby

• (AC220V to 240V, AC100V to 120V) 10W (Stanard) /

Heat Dissipation

• (AC220V to 240V, AC100V to 120V) 989 BTU, 1023 BTU

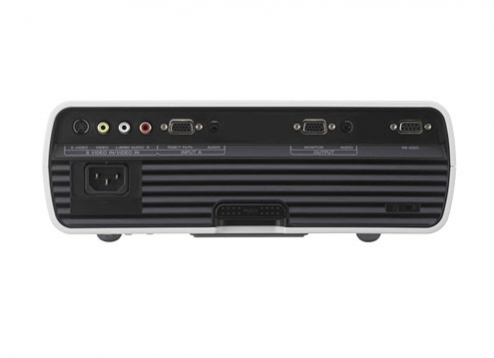

Input Interface

• Video Input (S Video)
• S-Video : Y/C mini DIN 4-pin Audio : Pin jack (x2) (shared with VIDEO IN)

Video Input
Composite :

• Pin jack Audio : Pin jack (x2) (shared with S-VIDEO IN) Input A (RGB/Y PB PR)
• Analog RGB/Componet : Mini D-sub 15 pin (female) Audio : Stereo mini jack

Output (Monitor Out)

• RGB : Mini D-sub 15 pin (female) Audio : Stereo mini jack (variable out)

Remote

• RS-232C : D-sub 9-pin (female)

Penjelasan/Ringkasani Projector SONY VPL-EX100
Model:VPL-EX100
SONY VPL-EX100 adalah pilihan yang sangat baik untuk Pendidikan atau bisnis, yang dirancang untuk memberikan biaya total kepemilikan yang rendah, dan termasuk fitur ramah lingkungan, berkat desain lampu tahan lama dan konsumsi daya rendah.

Desain Dengan Biaya-efisien & Energi yang efisien

• Lampu Awet
• Tombol ECO Mode
• Rendah Konsumsi Listrik
• Knalpot Depan
• penyesuaian Auto keystone

Gallery Image Projector SONY VPL-EX100
