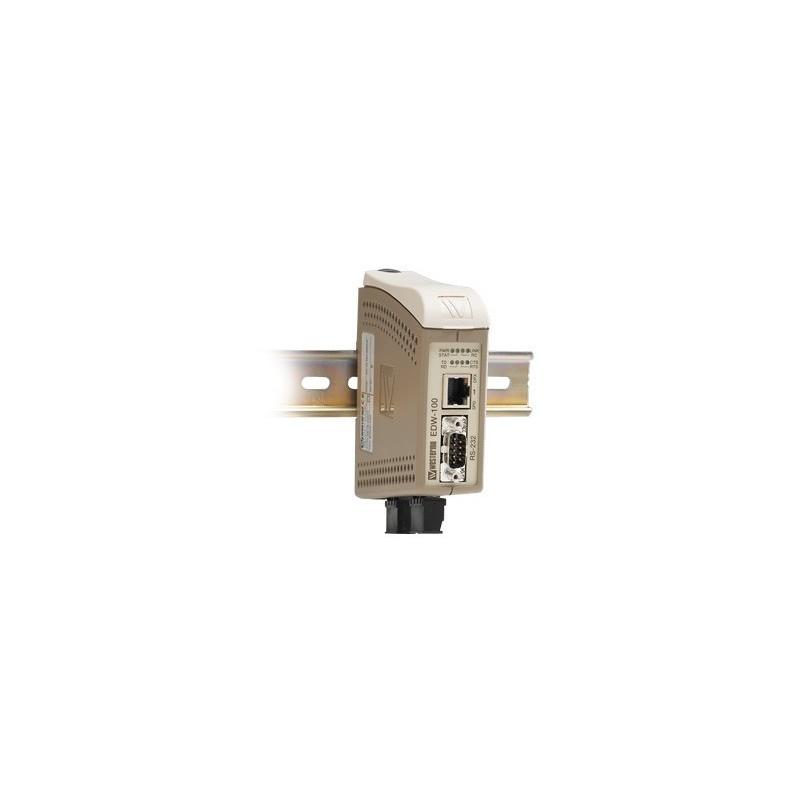

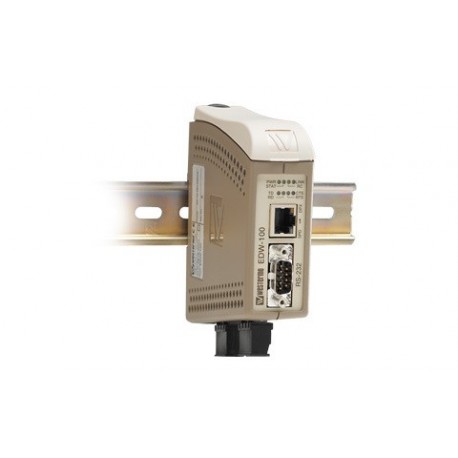

Westermo EDW-100 Serial Adapter
Kode Produk: 30879
AI1216Produk baru
1 x 4-position detachable screw terminal, RS-422/485, 1 x 9-pin D-sub, RS-232, 1 x RJ-45, Ethernet, Serial Adapter
Info lainnya
Spesifikasi Westermo EDW-100 Serial Adapter
| Ports | 1 x 4-position detachable screw terminal, RS-422/485 1 x 9-pin D-sub, RS-232 1 x RJ-45, Ethernet |
| Description | Serial Adapter |
| EMC specifications | |
| EN 61000-4-2, ESD | Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated | Enclosure: 20V/m 80% AM (1 kHz), 80 – 2 000 MHz 12V/m 80% AM (1 kHz), 2 000 – 2 700 MHz |
| ENV 50204, RF field 900 MHz | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz |
| EN 61000-4-4, fast transients | Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge | Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity | Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 1000 A/m, 6.4 / 16 µs pulse |
| EN 61000-4-29, voltage dips and interruption | DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage EN 55022, radiated RF emission Enclosure, class A |
| FCC part 15, radiated RF emission | Enclosure, class A |
| EN 55022, conducted emission | DC power ports, class |
| Safety | |
| EN 60950-1, dielectric strength | Signal port to other isolated ports, 1.5 kVrms 50 Hz 1 min Power port to other isolated ports, 2 kVrms 50 Hz 1 min |
| Safety | UL/CSA/IEC/EN 60950-1, IT |
| Climatic | |
| Temperature, operating | Operating, –25 to +70°C (–13 to +158°F) |
| Temperature, storage | Storage & Transport, –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating | Operating, 5 to 95% relative humidity |
| Humidity, storage | Storage & Transport, 5 to 95% relative humidity |
| Electrical specification | EIA RS-485 |
| 2-wire or 4-wire twisted pair | |
| Data rate | 300 bit/s to 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. |
| Protocol | Transparent, optimised by packing algorithm |
| Retiming | Not applicable |
| Turning time | < 3 bits |
| Circuit type | TNV-1 |
| Transmission range | ≤ 1200 m, depending on data rate and cable type (EIA RS-485) |
| Settings | 120 Ω termination and fail-safe biasing 680 Ω |
| Protection | Installation Fault Tolerant (up to ±60 V) |
| Isolation to | Power: 2 kV Ethernet: 1; 1.5 k Vrms |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 12) |
Ringkasan Produk Westermo EDW-100 Serial Adapter
The EDW-100 adalah serial ke converter Ethernet dirancang untuk memungkinkan RS-232, RS-422 dan RS-485 perangkat serial untuk berkomunikasi melalui TCP / IP jaringan Ethernet. DIP switch digunakan untuk konfigurasi RS-422/485 serta untuk pengaturan port Ethernet; antarmuka web yang dilindungi password digunakan untuk semua pengaturan lainnya. informasi diagnostik dapat diakses melalui sesi Telnet dengan informasi dasar yang lebih ditawarkan pada LED.8 produk lainnya dikategori yang sama:
-
