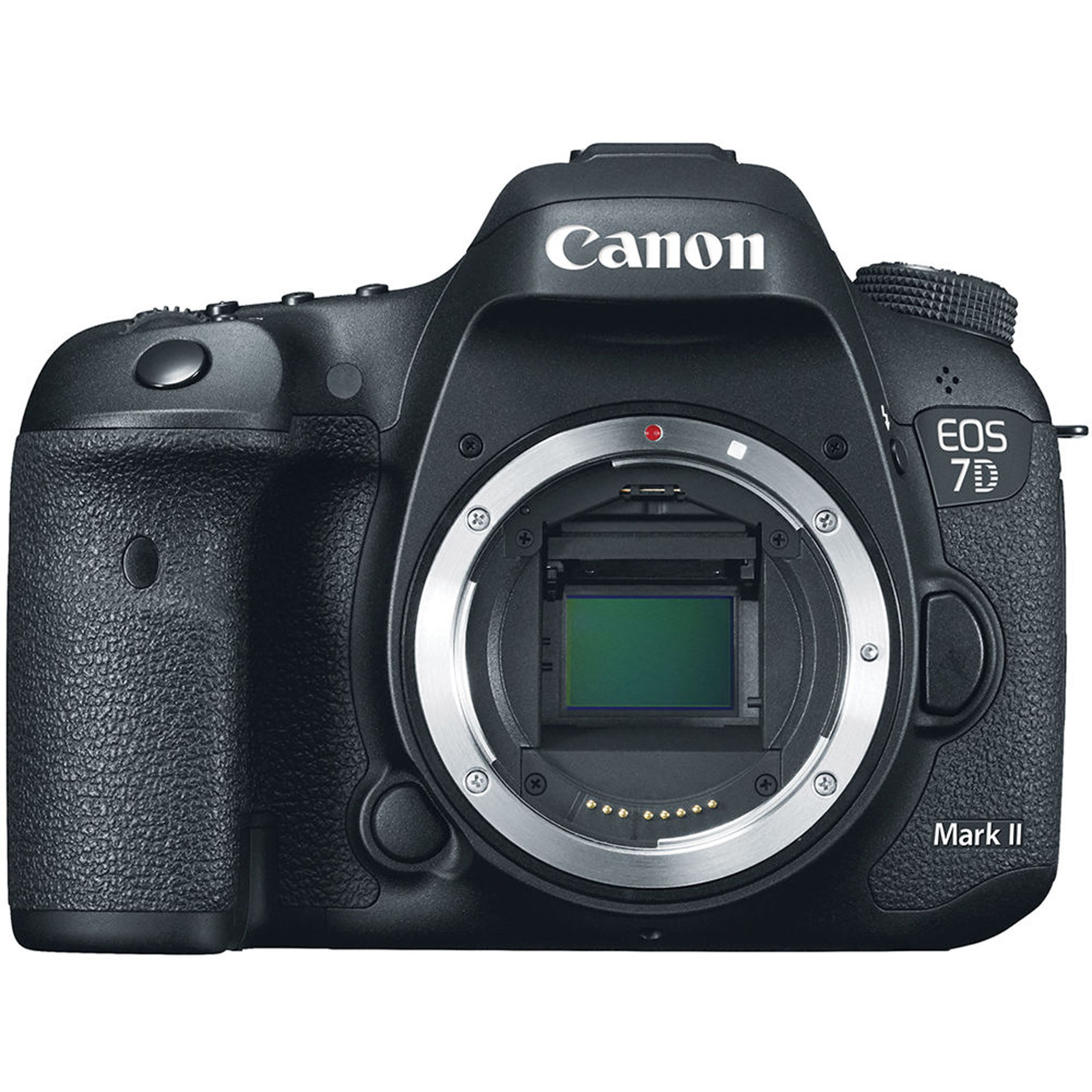

Canon EOS 7D Mark II (Body) Kamera Digital

Spesifikasi Canon EOS 7D Mark II (Body) Kamera Digital

Operating
Type
Type	Digital, single-lens reflex, AF / AE camera with built-in flash
Recording media	CF cards (Type I, UDMA 7 supported) SD / SDHC* / SDXC* memory cards * UHS-I cards compatible.
Image sensor size	Approx. 22.4 x 15.0mm
Compatible lenses	Canon EF lenses (including EF-S lenses) * Excluding EF-M lenses (35mm-equivalent focal length is approx. 1.6 times the focal length indicated on the lens)
Lens Mount	Canon EF mount
Image Sensor
Type	CMOS sensor
Effective pixels	Approx. 20.20 megapixels * Rounded off to the nearest 10,000th.
	Aspect ratio     3:2
Dust deletion feature	Auto / Manual, Appending Dust Delete Data
Recording System
Recording format	Design rule for Camera File System (DCF) 2.0
Image type	JPEG, RAW (14-bit Canon original), RAW+JPEG simultaneous recording possible
File size	L (Large)	Approx. 20.0 megapixels (5472 x 3648)
	M (Medium)	Approx. 8.90 megapixels (3648 x 2432)
	S1 (Small 1)	Approx. 5.0 megapixels (2736 x 1824)
	S2 (Small 2)	Approx. 2.50 megapixels (1920 x 1280)
	S3 (Small 3)	Approx. 350,000 pixels (720 x 480)
	RAW	Approx. 20.0 megapixels (5472 x 3648)
	M-RAW	Approx. 11.2 megapixels (4104 x 2736)
	S-RAW	Approx. 5.0 megapixels (2736 x 1824)
Recording functions	Standard, Auto switch card, Record separately, Record to multiple
Create / select a folder	Possible
File name	Preset code / User setting 1 / User setting 2
File numbering	Continuous, Auto reset, Manual reset
Image Processing
Picture Style	Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1 - 3
White balance	Auto, Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom, Color temperature setting (approx. 2500-10000 K), White balance correction, and White balance bracketing provided * Flash color temperature information transmission possible
Noise reduction	Applicable to long exposures and high ISO speed shots
Automatic image brightness correction
Auto Lighting Optimizer	provided
Highlight tone priority	Provided
Lens aberration correction	Peripheral illumination correction, Chromatic aberration correction, Distortion correction
Anti-flicker	Possible
Viewfinder
Type	Eye-level pentaprism
Coverage	Vertical / Horizontal approx. 100% (with Eye point approx. 22mm)
Magnification	Approx. 1.00x (-1 m-1 with 50mm lens at infinity)
Eyepoint	Approx. 22mm (from eyepiece lens center at -1 m-1)
Built-in dioptric adjustment	Approx. -3.0 - +1.0 m-1 (dpt)
Focusing screen	Eh-A standard screen, interchangeable
Grid display	Provided
Electronic level	Provided
Function setting display	Shooting mode, White balance, Drive mode, AF operation, Metering mode, Image quality: JPEG / RAW, Flicker detection, Warning symbol !, AF status
Mirror	Quick-return type
Depth-of-field preview	Provided
Autofocus
Type	TTL secondary image-registration, phase-difference detection with the dedicated AF sensor
AF Points	65 (Cross-type AF point: Max. 65 points) * Number of available AF points, cross-type points, and Dual cross-type points vary depending on the lens. * Dual cross-type focusing at f/2.8 with center AF point.(Excluding some lenses with f/2.8 or larger maximum aperture)
Focusing brightness range	EV -3 - 18 (Conditions: f/2.8-sensitive center AF point, One-Shot AF, room temperature, ISO 100)
Focus operation	One-Shot AF, AI Servo AF, AI Focus AF, Manual focusing (MF)
AF area selection mode	Single-point Spot AF (manual selection), Single-point AF (manual selection), AF point expansion (manual selection: up, down, left, and right), AF point expansion (manual selection: surround), Zone AF (manual selection of zone), Large Zone AF (manual selection of zone), 65-point automatic selection AF AF point automatic selection conditions
Based on EOS iTR AF setting (Enables AF incorporating human face/color information) * iTR: Intelligent Tracking and Recognition
AF Configuration Tool	Case 1 - 6
AI Servo AF characteristics	Tracking sensitivity, Acceleration/deceleration tracking, AF point auto switching
AF Custom Functions	17 functions
AF fine adjustment	AF Microadjustment (All lenses by same amount or Adjust by lens)
AF-assist beam	Small series of flashes fired by built-in flash
Exposure Control
Metering Modes	Approx. 150,000-pixel RGB+IR metering sensor and 252-zone TTL metering at max. aperture
EOS iSA (Intelligent Subject Analysis) system	Evaluative metering (linked to all AF points) Partial metering (approx. 6% of viewfinder at center) Spot metering (approx. 1.8% of viewfinder at center) Center-weighted average metering
Brightness metering range	EV 0 - 20 (at room temperature, ISO 100)
Exposure control	Program AE (Scene Intelligent Auto, Program), Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure
ISO speed (Recommended exposure index)	Scene Intelligent Auto	ISO 100 - ISO 6400 set automatically P, Tv, Av, M, B: Auto ISO, ISO 100 - ISO 16000 (in 1/3- or whole-stop increments), or ISO expansion to H1 (equivalent to ISO 25600) or H2 (equivalent to ISO 51200)
ISO speed settings	ISO speed range, Auto ISO range, and Auto ISO minimum shutter speed settable
Exposure compensation	Manual	±5 stops in 1/3- or 1/2-stop increments
	AEB	±3 stops in 1/3- or 1/2-stop increments (can be combined with manual exposure compensation)
	AE lock	Auto
Applied in One-Shot AF mode with evaluative metering when focus is achieved	Manual	By AE lock button
Interval timer	Shooting interval and shot count settable
Bulb timer	Bulb exposure time settable
HDR Shooting
Dynamic range adjustment	Auto, ±1, ±2, ±3
Effects	Natural, Art standard, Art vivid, Art bold, Art embossed
Auto image align	Provided
Multiple Exposures
Shooting methods	Function / control priority, Continuous shooting priority
Number of multiple exposures	2 to 9 exposures
Multiple-exposure control	Additive, Average, Bright, Dark
Shutter
Type	Electronically-controlled, focal-plane shutter
Shutter speeds	1/8000 sec. to 30sec. (total shutter speed range; available range varies by shooting mode), Bulb, X-sync at 1/250sec.
Drive System
Drive modes	Single shooting, High-speed continuous shooting, Low-speed continuous shooting, Silent single shooting, Silent continuous shooting, 10-sec. self-timer/remote control, 2-sec. self-timer / remote control
Continuous shooting speed	High-speed continuous shooting	Max. approx. 10.0 shots/sec. (settable to 10 to 2 shots/sec.) * Max. approx. 9.5 shots/sec. with EOS iTR AF.
	Low-speed continuous shooting	Approx. 3.0 shots/sec. (settable to 9 to 1 shots/sec.)
	Silent continuous shooting	Approx. 4.0 shots/sec. (settable to 4 to 1 shots/sec.) Max. burst     JPEG Large / Fine:    Approx. 130 shots (approx. 1090 shots) RAW:     Approx. 24 shots (approx. 31 shots)
RAW+JPEG Large/Fine: Approx. 18 shots (approx. 19 shots)	* Figures are based on Canon's testing standards (Aspect ratio: 3 x 2, ISO 100 and Standard Picture Style) and an 8 GB CF card. * Figures in parentheses apply to an UDMA mode 7, CF card based on Canon's testing standards.
Flash
Built-in flash	Retractable, auto pop-up flash
Guide number	Approx. 11/36.1 (ISO 100, in meters/feet)
Flash coverage	Approx. 15mm lens angle of view
Recycling time	Approx. 3 sec.
External Speedlite	Compatible with EX-series Speedlites
Flash metering	E-TTL II autoflash
Flash exposure compensation	±3 stops in 1/3- or 1/2-stop increments
FE lock	Provided
PC terminal	Provided
Flash control	Built-in flash function settings, External Speedlite function settings, External Speedlite Custom Function settings Wireless flash control via optical transmission possible
Live View Shooting
Focus methods	Dual Pixel CMOS AF system/Contrast-detection AF system (Face+Tracking, FlexiZone-Multi, FlexiZone-Single), Manual focus (approx. 5x and 10x magnified view possible for focus check)
Continuous AF	Provided
Focusing brightness range	EV 0 - 18 (at room temperature, ISO 100)
Metering modes	Evaluative metering (315 zones), Partial metering (approx. 10% of Live View screen), Spot metering (approx. 2.6% of Live View screen), Center-weighted average metering
Brightness metering range	EV 0 - 20 (at room temperature, ISO 100)
Aspect ratio	3:2, 4:3, 16:9, 1:1
Silent shooting	Provided (Mode 1 and 2)
Grid display	3 types
External Speedlite
Zooming to Match Lens Focal Length	Provided
Compatible flash	EX-series Speedlites
Flash metering	E-TTL II autoflash
Flash exposure compensation	±3 stops in 1/3- or 1/2-stop increments
FE lock	Provided
External flash settings	Flash function settings, Flash C.Fn settings
Live View Functions
Focus methods	Dual Pixel CMOS AF system/Contrast-detection AF system (Face+Tracking, FlexiZone-Multi, FlexiZone-Single), Manual focus (approx. 5x and 10x magnified view possible for focus check)
Continuous AF	Provided
Focusing brightness range	EV 0 - 18 (at room temperature, ISO 100)
Metering modes	Evaluative metering (315 zones), Partial metering (approx. 10% of Live View screen), Spot metering (approx. 2.6% of Live View screen), Center-weighted average metering
Brightness metering range	EV 0 - 20 (at room temperature, ISO 100)
Aspect ratio	3:2, 4:3, 16:9, 1:1
Silent shooting	Provided (Mode 1 and 2)
Grid display	3 types
Movie shooting
Recording format	MOV / MP4
Movie	MPEG-4 AVC / H.264
Variable (average) bit rate
Audio	MOV	Linear PCM
	MP4	AAC
Recording size and frame rate	Full HD (1920x1080)	59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
	HD (1280x720)	59.94p / 50.00p / 29.97p / 25.00p
	SD (640x480)	29.97p / 25.00p
Compression method	ALL-I (For editing / I-only), IPB (Standard), IPB (Light) * IPB (Light) is for MP4 only.
File size [MOV]
	Full HD (59.94p / 50.00p) / IPB (Standard)	Approx. 440MB/min.
	Full HD (29.97p / 25.00p / 24.00p / 23.98p) / ALL-I	Approx. 654MB/min.
	Full HD (29.97p / 25.00p / 24.00p / 23.98p) / IPB (Standard)	Approx. 225MB/min.
	HD (59.94p / 50.00p) / ALL-I	Approx. 583MB/min.
	HD (59.94p / 50.00p) / IPB (Standard)	Approx. 196MB/min.
	SD (29.97p / 25.00p) / IPB (Standard)	Approx. 75MB/min.
[MP4]
	Full HD (59.94p / 50.00p) / IPB (Standard)	Approx. 431MB/min.
	Full HD (29.97p / 25.00p / 24.00p / 23.98p) / ALL-I	Approx. 645MB/min.
	Full HD (29.97p / 25.00p / 24.00p / 23.98p) / IPB (Standard)	Approx. 216MB/min.
	Full HD (29.97p / 25.00p) / IPB (Light)	Approx. 87MB/min.
	HD (59.94p / 50.00p) / ALL-I	Approx. 574MB/min.
	HD (59.94p / 50.00p) / IPB (Standard)	Approx. 187MB/min.
	HD (29.97p / 25.00p) / IPB (Light)	Approx. 30MB/min.
	SD (29.97p / 25.00p) / IPB (Standard)	Approx. 66MB/min.
	SD (29.97p / 25.00p) / IPB (Light)	Approx. 23MB/min.
Card requirements (Writing / reading speed)
[CF card]	ALL-I	30 MB/sec. or faster
	IPB (Standard)	Full HD 59.94p/50.00p: 30 MB/sec. or faster
	IPB (Standard)	other than above: 10 MB/sec. or faster
	IPB (Light)	10 MB/sec. or faster (MP4 only)
[SD card]	ALL-I	20 MB/sec. or faster
	IPB (Standard)	Full HD 59.94p/50.00p: 20 MB/sec. or faster
	IPB (Standard)	other than above: 6 MB/sec. or faster
	IPB (Light)	4 MB/sec. or faster (MP4 only)
Focus methods	Same as focusing with Live View shooting Movie Servo AF customizable
Metering modes	Center-weighted average and Evaluative metering with the image sensor * Automatically set by the focus method.
Brightness metering range	EV 0 - 20 (at room temperature, ISO 100)
Exposure control	Autoexposure shooting (Program AE for movie shooting), Shutter-priority AE, Aperture-priority AE, Manual exposure
Exposure compensation	±3 stops in 1/3-stop or 1/2-stop increments
ISO speed (Recommended exposure index)	Scene Intelligent Auto, Tv: Automatically set within ISO 100 - ISO 16000 P, Av, B: Automatically set within ISO 100 - ISO 16000, expandable to H1 (equivalent to ISO 25600) M: Auto ISO (automatically set within ISO 100 - ISO 16000), ISO 100 - ISO 16000 set manually (in 1/3- or whole-stop increments), expandable to H1 (equivalent to ISO 25600)
Time code	Supported
Drop frames	Compatible with 59.94p / 29.97p
Sound recording	Built-in monaural microphone, external stereo microphone terminal provided Sound-recording level adjustable, wind filter provided, attenuator provided
Headphones	Headphone socket provided and volume adjustment possible
Grid display	3 types
Still photo shooting	Possible * Except when set to Full HD 59.94p / 50.00p
2-screen display	LCD monitor and HDMI output movie displayable simultaneously
HDMI output	Movie without information display can also be output. * Auto / 59.94i / 50.00i / 59.94p / 50.00p / 23.98p selectable
LCD Monitor
Type	TFT color, liquid-crystal monitor
Monitor size and dots	Wide 7.7cm (3.0-in) (3:2) with approx. 1.04 million dots
Brightness adjustment	Auto (Dark, Standard, Bright), Manual (7 levels)
Electronic level	Provided
Interface languages	25
Help display	Possible
Playback
Image display formats	Image display formats  Single-image display (without shooting information), Single-image display (with simple information), Single-image display (Shooting information displayed: Detailed information, Lens / histogram, White balance, Picture Style, Color space / noise reduction, Lens aberration correction, GPS), Index display (4/9/36/100 images), Two-image display
Highlight alert	Overexposed highlights blink
AF point display	Provided
Grid display	3 types
Magnified view	Approx. 1.5x-10x, initial magnification and position settable
Image browsing methods	Single image, Jump by 10 or 100 images, By shooting date, By folder, By movies, By stills, By protected images, By rating
Image rotation	Provided
Rating	Provided
Movie playback	Enabled (LCD monitor, HDMI)
Built-in speaker
Slide show	All images, By date, By folder, By movies, By stills, By protected images, By rating
Image protection	Possible
Copying images	Possible
Post-Processing of Images	In-camera RAW image processing
Brightness correction	White balance, Picture Style, Auto Lighting Optimizer, High ISO speed noise reduction, JPEG image-recording quality, Color space, Peripheral illumination correction, Distortion correction, Chromatic aberration correction
Resize	Provided
Direct Printing
Compatible printers	PictBridge-compatible printers
Printable images	JPEG and RAW images
Print ordering	DPOF Version 1.1 compliant
Image Transfer
Transferrable files	Still photos (JPEG, RAW, RAW+JPEG images), Movies
GPS Function
Compatible satellites	GPS satellites (USA), GLONASS satellites (Russia), Quasi-Zenith Satellite System (QZSS) "MICHIBIKI" (Japan)
Geotag information appended to image	Latitude, Longitude, Elevation, Direction, Coordinated Universal Time (UTC), satellite signal condition
Geotag updating interval	1sec., 5sec., 10sec., 15sec., 30sec., 1min., 2min., 5min.
Time setting	GPS time data set to camera
Digital compass	Three-axis geomagnetic sensor and three-axis accelerometer sensor used for orientation sensing
Log data	One file per day, NMEA format * Changing the time zone creates another file. * The log data saved in internal memory as a log file can be transferred to a card or downloaded to a computer.
Log data deletion	Possible
Customization Functions
Custom Functions	18
My Menu	Up to 5 screens can be registered
Custom shooting modes	Register under Mode Dial's C1, C2, or C3
Copyright information	Text entry and inclusion enabled Interface
DIGITAL terminal	SuperSpeed USB (USB 3.0) Computer communication, direct printing, Wireless File Transmitter WFT-E7 (Ver. 2) connection HDMI mini OUT terminal
Type C	(Auto switching of resolution), CEC-compatible
External microphone IN terminal	3.5mm diameter stereo mini-jack
Headphone terminal	3.5mm diameter stereo mini-jack
Remote control terminal	For N3-type remote control units
Wireless remote control	Compatible with Remote Controller RC-6
Eye-Fi card	Supported
Power
Battery	Battery Pack  LP-E6N/LP-E6, quantity 1 * AC power can be supplied via AC Adapter Kit ACK-E6. * With Battery Grip BG-E16 attached, size-AA/LR6 batteries can be used.
Battery information	Remaining capacity, Shutter count, Recharge performance, and Battery registration possible
Number of possible shots (Based on CIPA testing standards)	With viewfinder shooting	Approx. 670 shots at 23°C / 73°F, approx. 640 shots at 0°C / 32°F
	With Live View shooting	Approx. 250 shots at 23°C / 73°F, approx. 240 shots at 0°C / 32°F
	Movie shooting time	Approx. 1hr. 40min. at 23°C / 73°F Approx. 1hr. 30min. at 0°C / 32°F * With a fully-charged Battery Pack LP-E6N.
Operating Environment
Working temperature range	0°C - 40°C / 32°F - 104°F
Working humidity	85% or less
Battery Pack	LP-E6N
Type	Rechargeable lithium-ion battery
Rated voltage	7.2 V DC
Battery capacity	1865 mAh
Working temperature range	0°C - 40°C / 32°F - 104°F
Working humidity	85% or less
Battery Charger	LC-E6
Compatible battery	Battery Pack LP-E6N / LP-E6
Recharging time	Approx. 2hr. 30min.
Rated input	100 - 240 V AC (50 / 60 Hz)
Rated output	8.4 V DC / 1.2 A
Working temperature range	5°C - 40°C / 41°F - 104°F
Working humidity	85% or less
Battery Charger	LC-E6E
Compatible battery	Battery Pack LP-E6N / LP-E6
Power cord length	Approx. 1m / 3.3ft.
Recharging time	Approx. 2hr. 30min.
Rated input	100 - 240 V AC (50 / 60 Hz)
Rated output	8.4 V DC / 1.2 A
Working temperature range	5°C - 40°C / 41°F - 104°F
Working humidity	85% or less
Focal length / Speed	18 -135mm / f/3.5-5.6
Lens construction	16 elements in 12 groups
Minimum aperture	f/22 - 36 * f/22-38 when 1/2 stop increments set for aperture
Angle of view	Diagonal extent	74°20´ - 11°30´
	Vertical extent	45°30´ - 6°20´
	Horizontal extent	64°30´ - 9°30´
Angle of view	0.39m / 1.28ft.
Max. magnification	0.28x (at 135 mm focal length)
Field of view	Approx. 248 x 372 - 53 x 80mm / 9.8 x 14.6 - 2.1 x 3.1in. (at 0.39m / 1.28ft.)
Filter size	67mm
Hood	EW-73B (sold separately)
Lens cap	E-67 II
Case	LP1116 (sold separately) EF-S15-85mm f/3.5-5.6 IS USM
Focal length / Speed	15 - 85mm / f/3.5-5.6
Lens construction	17 elements in 12 groups
Minimum aperture	f/22 - 36 * f/22-38 when 1/2 stop increments set for aperture
Angle of view	Diagonal extent	84°30´ - 18°25´
	Vertical extent	53°30´ - 10°25´
	Horizontal extent	74°10´ - 15°25´
	Closest focusing distance	0.35m / 1.15ft.
	Max. magnification	0.21x (at 85mm focal length)
	Field of view	Approx. 255 x 395 - 75 x 108 / 10.0 x 15.6 - 3.0 x 4.3in. (at 0.35m / 1.15ft.)
	Filter size	72mm
	Max. diameter x length	Approx. 81.6 x 87.5mm / 3.2 x 3.4in.
	Weight	Approx. 575g / 20.3oz.
	Hood	EW-78E (sold separately)
	Lens cap	E-72 II
		LP1116 (sold separately)

Berat dan ukuran Canon EOS 7D Mark II (Body) Kamera Digital

Dimensions (W x H x D)	Approx. 148.6 x 112.4 x 78.2mm / 5.85 x 4.43 x 3.08in.
Weight	Approx. 910g / 32.10oz. (Based on CIPA Guidelines) Approx. 820g / 28.92oz. (Body only)

Ringkasan Produk Canon EOS 7D Mark II (Body) Kamera Digital

Melampaui kecepatan, EOS 7D Mark II dilengkapi dengan luar biasa 20,2 megapixel CMOS sensor, ISO 16000, dan
ini didukung oleh prosesor dual DIGIC 6 gambar untuk memastikan kualitas pencitraan sempurna dalam kondisi pemotretan
dan situasi pencahayaan. Fungsi Ganda Pixel CMOS AF menyediakan halus dan akurat fokus saat pengambilan gambar video,
sehingga pelajaran akan tetap fokus bahkan dalam adegan yang paling dinamis.
Ganda Pixel CMOS AF
Sensor ganda DIGIC prosesor 6 gambar & 20.2M APS-C CMOS
65-point semua cross-type AF & 10 fps Continuous Shooting

EOS 7D Mark II dilengkapi dengan merek baru 65-point semua cross-type AF sistem dan dilengkapi dengan area AF
lebih besar dari kebanyakan kamera sensor APS-C. Dengan 65 titik AF yang mencakup hampir seluruh frame,ini mengarah ke sangat meningkat akurasi bahkan jika subjek yang bergerak cepat. Titik AF tengah adalah f / 2.8 cross-type titik ganda, dan bisa fokus bahkan dalam situasi cahaya yang sangat rendah ke EV -3 pencahayaan.10 frame per detik kecepatan pengambilan gambar terus menerus

Melalui shutter dan cermin mekanisme baru semua, EOS 7D Mark II memiliki cepat 55 milidetik shutter release lag dan waktu dapat jam terus menerus kecepatan pengambilan gambar hingga 10 fps. Dengan tingkat ledakan yang cepat, pengguna akan dapat menangkap acara olahraga, satwa liar atau anak-anak yang aktif dengan presisi dan ketajaman.

Untuk memenuhi kebutuhan pengguna yang lebih memilih kecepatan rendah-menembak dan menangkap pelajaran lebih lambat bergerak, EOS 7D Mark II dilengkapi dengan kecepatan manual adjustable - fitur yang sebelumnya hanya tersedia di kisaran atas seri EOS 1D. Dengan mekanisme pengurangan cermin mental baru, pengguna dapat memilih untuk Mode Diam saat pemotretan di bawah 5 fps.

Ganda Pixel CMOS AF
EOS 7D Mark II fitur yang ditingkatkan kemampuan video dengan penambahan fungsi ganda Pixel CMOS AF baru. Hal ini memungkinkan kecepatan tinggi fase-perbedaan deteksi AF pada bidang sensor CMOS, memungkinkan untuk AF sangat cepat dan pelacakan subjek halus Live View dan modus perekaman film. Dengan sistem baru ini, mata pelajaran akan terus disimpan dalam fokus bahkan dengan perubahan yang tidak menentu di jarak mereka dari kamera.Dual Pixel CMOS AF juga memungkinkan Film Servo AF untuk memberikan tenang fokus dan pelacakan, terutama ketika dipasangkan dengan lensa STM. Kecepatan AF juga dapat disesuaikan sesuai dengan
gambar yang lebih canggih, seperti pergeseran fokus lambat sesuai momen lembut.
