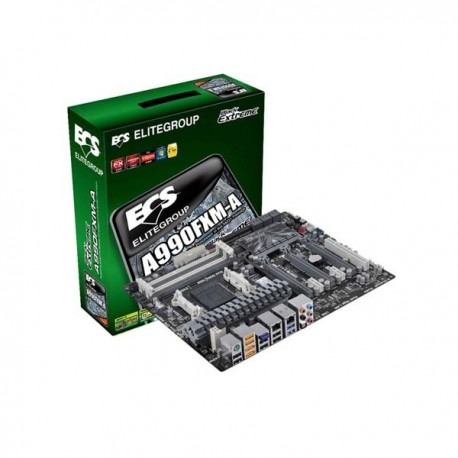

ECS A990FXM-A Deluxe AM3 AMD990FX DDR3 SATA3 USB3

Spesifikasi produk Motherboard AMD ECS A990FXM-A Deluxe AM3 AMD990FX DDR3 SATA3 USB3

CPU

• Supports AMD® AM3+ & AM3 socket for AMD® FX-Series and Phenom™ II processors
• High Performance AMD HyperTransport 3.0 CPU Interface
• 100% Solid capacitor design
• Supports AMD® 125W 8 Core / 6 Core processors
• Please refer to CPU support list for details

CHIPSET

• AMD® 990FX
• AMD® SB950

GRAPHICS

• Supports NVIDIA® 3-Way SLI
• Supports ATI® 3-Way CrossFireX™

MEMORY

• Dual-channel DDR3 Memory architecture
• Supports DDR3 1866/1800/1600/ non-ECC, Un-buffered SDRAM Memory
• Supports up to 2133(OC)
• 4 X 240-pin DDR3 DIMM socket
• Support up to 32 GB*
• * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
• Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

• 3 X PCI Express X16 Gen 2.0 slot(s)
• 2 X PCI Express X 1 Gen 2.0 slot(s)
• Supports NVIDIA® SLI Technology
• Supports ATI® CrossfireX Technology
• 1 X PCI slot(s)

Storage

• Support by AMD SB950 Express Chipset
•  6 X Serial ATAIII 6Gb/s
• Support by Marvell 9128 Controler
•  2 X eSATAIII 6Gb/s
•  2 X Ultra DMA 133/100/66
•  RAID0, RAID1,RAID5, RAID 10 configuration
• Supports NCQ, AHCI and "Hot Plug" functions

Audio

• 8-Channel HD audio CODEC
• Compliant with HD audio specification
• Realtek ALC892
• Realtek ALC892 8-channel High Definition audio CODEC
• Compatible with Direct Sound 3D™, A3D™, I3DL2
• Smart multiple streaming operation
• Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
• 7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LAN

• Realtek 8111E Gigabit Fast Ethernet Controller
• (Realtek 8105E 10/100Mbps Fast Ethernet Controller optional)
• Wake-On-LAN
• Dual LAN with Teaming function
• Bluetooth
• Supports Bluetooth V4.0

USB

• Support by AMD® 990FX Express Chipset
•  2 X USB3.0 port(s) up to 5Gb/s
•  8 X USB2.0 port(s) Up to 480 Mb/s
• ECS EZ Charger (Gray USB header)

REAR PANEL I/O

• 1 X PS/2 combo connector
• 1 X Audio port (Line-in,4x Line-out, SPDIF out)
• 2 X RJ-45 port with teaming function
• 1 X Bluetooth Dongle
• 2 X eSATA 6Gb/s port(s)
• 1 X Clear_CMOS Button

CONNECTORS & HEADERS

• 1 X 24-pin ATX Power Supply connector
• 1 X 8-pin ATX 12V Power Connector
• 1 X 4-pin CPU_FAN connector
• 1 X 3-pin SYS_FAN connector
• 1 X 3-pin PWR_FAN connector
• 1 X Power on button
• 1 X Reset button
• 1 X IDE connector
• 1 X Front Panel switch/LED header
• 1 X Front panel audio header
• 1 X Onboard Buzzer
• 1 X USB 3.0 header
•  Support additional 2 USB ports
• 1 X USB 2.0 header
•  Support additional 2 USB ports
• 1 X S/PDIF out header
• 6 X SATA III 6Gb/s connector(s)
• 1 X CLR_CMOS header

SYSTEM BIOS

• AMI BIOS with 32 MB SPI Flash ROM
• Supports M.I.B X Utility
• F7 hot key for boot up devices option
• Over-Clocking
• Support GUI UEFI BIOS
• Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
• Multi-Language BIOS
• Audio, LAN, can be disabled in BIOS
• Supports PgUp clear CMOS Hotkey

FORM FACTOR

• ATX Form Factor
•  305mm(W)*244mm(H)

OS Support

• Windows XP 32-bit
• Windows XP 64-bit
• Windows Vista 32-bit
• Windows Vista 64-bit
• Windows 7 32-bit
• Windows 7 64-bit
• Windows 8 32-bit
• Windows 8 64-bit

Certifications

• CE/FCC Certification
• ErP/EuP Certification
• WHQL Certification

Bundled Software

• ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
