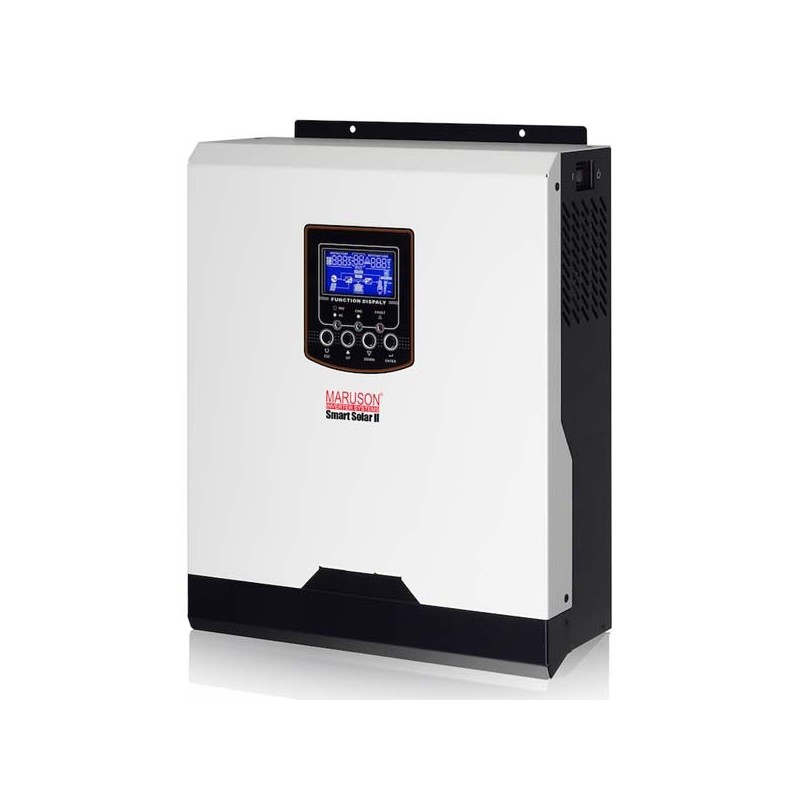

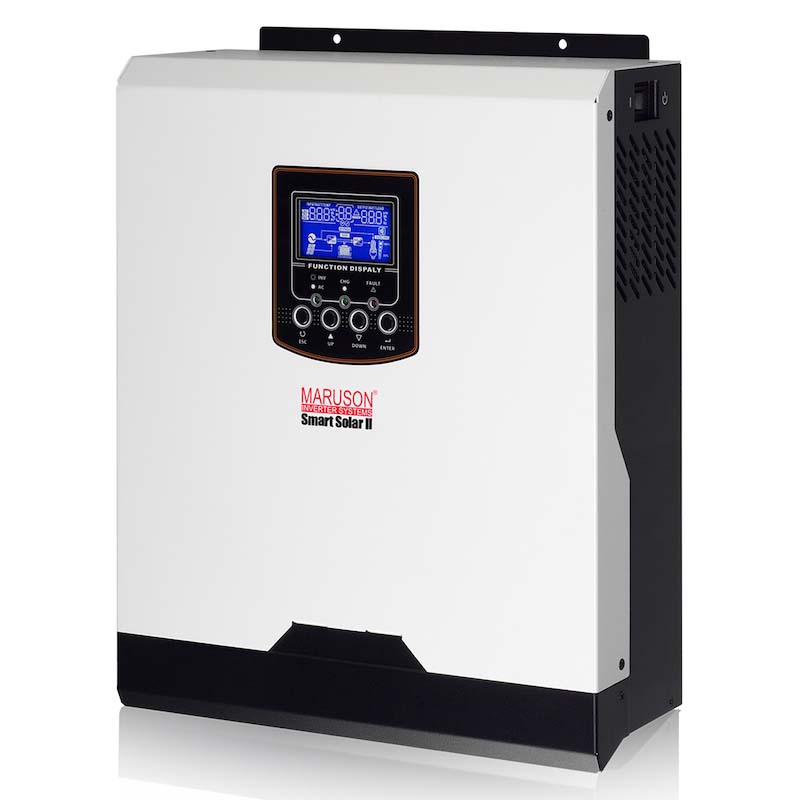

Maruson SS2-HV2024M Smart Solar Inverter

Kode Produk: 35877

Referensi EV1219

Kondisi: Produk baru

Maruson SS2-HV2024M Smart Solar Inverter
Produk smart solar inverter yang cocok digunakan pada small office home office.
Produk Inverter ini memiliki efisiensi yang cukup tinggi dan memiliki kapasitas 2000VA/2000Watt. Dilengkapi dengan solar charger 40A bertype MPPT.

*tidak termasuk battery*

Lebih detail

Kirim ke teman

Kirim ke teman

Maruson SS2-HV2024M Smart Solar Inverter
Maruson SS2-HV2024M Smart Solar Inverter
Produk smart solar inverter yang cocok digunakan pada small office home office.
Produk Inverter ini memiliki efisiensi yang cukup tinggi dan memiliki kapasitas 2000VA/2000Watt. Dilengkapi dengan solar charger 40A bertype MPPT.

*tidak termasuk battery*

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Maruson SS2-HV2024M Smart Solar Inverter

MODEL	SS2-HV2024M
Capacity	2000 VA / 2000 Watt
INPUT	Voltage 230 VAC
Voltage Range Selectable	170 ~ 280 VAC (for computers) 90 ~ 280 VAC (for home appliances)
Freq	50 / 60 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)	230 VAC +/- 5%
Surge Power	4000 VA
Efficiency (Peak)	90 ~ 93%
Transfer Time	10ms (for computers); 20ms (for home appliances)
Waveform	Pure sine wave
BATTERY (Not Included)
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	31 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Max PV Array Open Circuit Voltage	102 VDC
Max PV Array Power	1000 W
MPP Range @ Operating Voltage	30 ~ 80 VDC
Max Solar Charging Current	40 A
Max AC Charging Current	25 A
Combined AC & Solar Max Charging Current	60 A
MANAGEMENT
Interface	USB / RS-232
Monitoring	Software
PROTECTION
Full Protection	Overload and short circuit protection
INDICATOR
Display	LCD
Alarm	Battery mode, Low battery, Overload, Fault

Berat dan ukuran Maruson SS2-HV2024M Smart Solar Inverter

Dimension (DxWxH) mm	88 x 225 x 320
Net Weight kg	5

Ringkasan Produk Maruson SS2-HV2024M Smart Solar Inverter

Features :

2000 VA pure sine wave off-grid solar inverter
Max. charge current up to 60A
Built-in internal MPPT solar charge controller
Configurable max. charging current by selecting AC charging current and solar charging current
Configurable AC / Solar input priority via LCD setting
Selectable input voltage range: wide range for home appliances or standard range for computers
The load could be powered from Solar + AC grid even battery power failed
Smart battery charger design for optimized battery performance
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Wide DC input range
