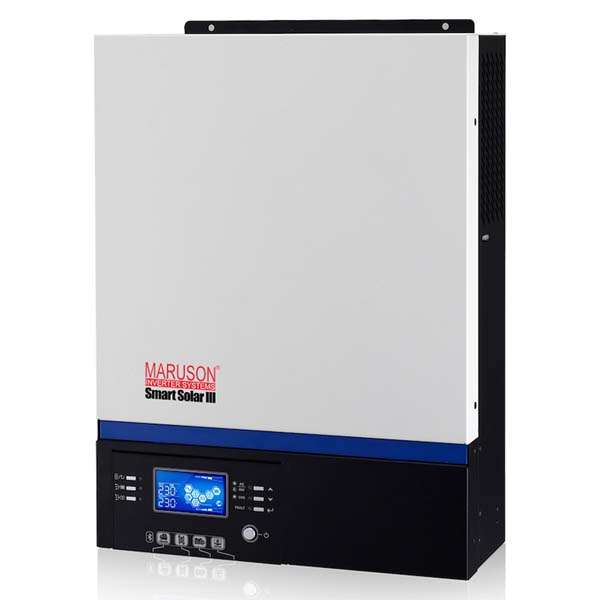

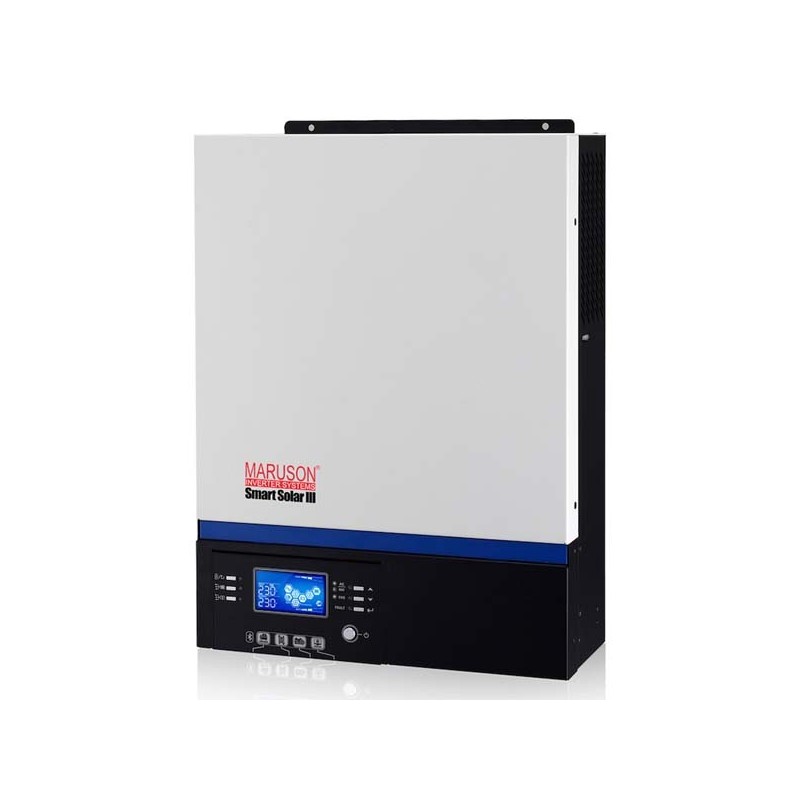

Maruson SS3-HV3024M Smart Solar Inverter

Kode Produk: 35878

Referensi EV1219

Kondisi: Produk baru

Maruson SS3-HV3024M Smart Solar Inverter
Produk smart solar inverter yang cocok digunakan pada office atau pada rumah. Produk Inverter ini memiliki efisiensi yang cukup tinggi dan memiliki kapasitas 3000VA/3000Watt. Dilengkapi dengan solar charger 80A bertype MPPT.

*tidak termasuk battery*

Lebih detail

Kirim ke teman

Kirim ke teman

Maruson SS3-HV3024M Smart Solar Inverter
Maruson SS3-HV3024M Smart Solar Inverter
Produk smart solar inverter yang cocok digunakan pada office atau pada rumah. Produk Inverter ini memiliki efisiensi yang cukup tinggi dan memiliki kapasitas 3000VA/3000Watt. Dilengkapi dengan solar charger 80A bertype MPPT.

*tidak termasuk battery*

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

SPESIFIKASI Maruson SS3-HV3024M Smart Solar Inverter

MODEL	SS2-HV2024M
Capacity	3000 VA / 3000 Watt
INPUT	Voltage 230 VAC
Voltage Range Selectable	170 ~ 280 VAC (for computers) 90 ~ 280 VAC (for home appliances)
Freq	50 / 60 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)	230 VAC +/- 5%
Surge Power	6000 VA
Efficiency (Peak)	90 ~ 93%
Transfer Time	10ms (for computers); 20ms (for home appliances)
Waveform	Pure sine wave
BATTERY (Not Included)
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Max PV Array Open Circuit Voltage	500 VDC
Max PV Array Power	4000 W
MPP Range @ Operating Voltage	120 ~ 450 VDC
Max Solar Charging Current	80 A
Max AC Charging Current	60 A
Combined AC & Solar Max Charging Current	80 A
MANAGEMENT
Interface	USB / RS-232 / RS-485 / Bluetooth / Dry-contact
Monitoring	Software
PROTECTION
Full Protection	Overload and short circuit protection
INDICATOR
Display	LCD
Alarm	Battery mode, Low battery, Overload, Fault

BERAT DAN UKURAN Maruson SS3-HV3024M Smart Solar Inverter

Dimension (DxWxH) mm	100 x 280 x 390
Net Weight kg	9

RINGKASAN PRODUK Maruson SS3-HV3024M Smart Solar Inverter

Features :

3000 VA pure sine wave off-grid solar inverterr
Built-in internal MPPT solar charge controller
Integrated Bluetooth interface with Android App (WatchPower App is available in google store)
Detachable LCD control module with various communications (Users can install LCD panel in accessible area away from inverter up to 20 meters)
Supports USB On-the-Go function to facilitate data upload/download
Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS
Replaceable fan design for ease of maintenance
Battery equalization extends lifecycle
Battery independent design
User-friendly LCD operation
