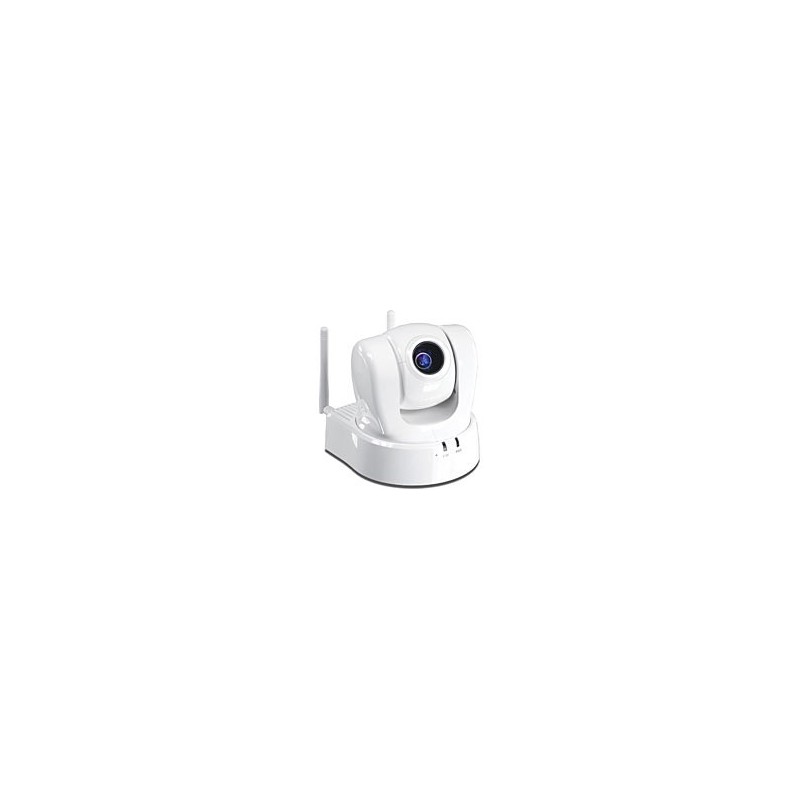

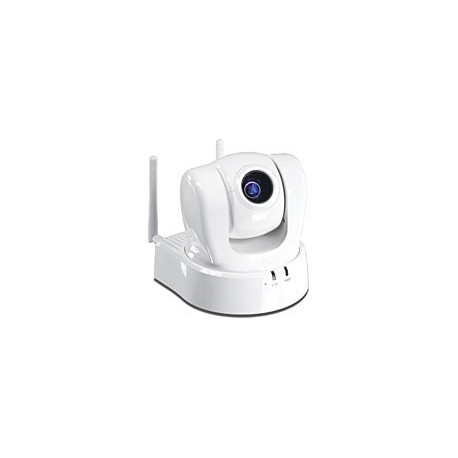

TRENDnet TV-IP612WN Wireless PTZ Internet Camera

Spesifikasi TRENDnet TV-IP612WN Wireless PTZ Internet Camera

Camera

• General   Sensor: 1/4” CCD Sensor
• Focal Length: f(wide) 3.8mm to f(tele) 38.0mm
• F/No: F(wide)=1.8 , F(tele) = 2.8
• LENS: Auto focus zoom lens with IR cut filter
• Zoom Ratio: 10x optical zoom plus 16x digital zoom
• Color: full color or black and white mode
• Day & Night image modes: Automatic or scheduled transition between modes Minimum illumination: Color: 0.7 lux@F1.8 B/W: 0.02 lux@F1.8
• View:
• Wide Angle:
• Horizontal: 51.3 degree
• Vertical: 39.3 degree
• Max. Zoom Angle:
• Horizontal: 5.6degree
• Vertical: 7.3 degree

Audio

• Built-in omni-directional microphone
• Sensitivity: -40dB +/- 3dB (5 meters max.)
• Frequency: 100~20000Hz
• S/N: >60dB
• Codec: ARM/PCM
• External speaker output (speaker sold separately)
• Two-way audio with echo canceling

Pan & Tilt

• Pan: -165° ~ +165°
• Tilt: up 84° and down 31°
• Preset positions: 20
• Auto Patrol and manual controls

Image & Video

• Compression: simultaneous H.264 / MPEG-4 / MJPEG
• Profiles: up to 4 profiles simultaneously
• IRIS Control /white balance control: automatic
• Resolution: 704 x 480, 352 x 240, and 176 x 112 @ 30fps (NTSC)
• Resolution: 704 x 576, 352 x 288, and 176 x 144 @ 25fps (PAL)
• Built-in ICR

GPIO

• Input: 1 set
• Output: 1 set
• Micro SD slot
• Micro Secure Digital card (up to 16G)

Hardware

• Network   IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet
• LED   Power, Link/Act
• Reset Button   Reset to factory default
• Power Consumption   12 Watts (max.)
• Power   12V, 2A external power adapter
• Dimension   125 x 130 x 125 mm (4.9 x 5.1 x 4.9 in.)
• Weight   Camera: 800 g (28.22 oz.)
• Temperature   Operating: 0°C ~ 45°C (32°F ~ 113°F)
• Storage: -15°C ~ 60°C (5°F ~ 140°F)
• Humidity   Max. 90% (non-condensing)
• Certifications   CE, FCC

Requirement

• To View Camera   Internet Explorer 7.0 or above, Firefox 3.5 or above, Safari 4.0 or above
• To Run Software   Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
• IPView Pro 2.0   Channel: supports up to 32 cameras
• Record/Playback/Motion Detection/Audio
• Network Protocols   IPv4, ARP, TCP, UDP, ICMP
• DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
• HTTP
• Samba Client
• PPPoE
• UPnP
• RTP (Real Time Protocol)
• RTCP (Real Time Control Protocol)
• RTSP (Real Time Streaming Protocol)

Wireless

• Standard   IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
• Frequency   2.4 ~ 2.497 GHz ISM band
• Modulation   DQPSK, DBPSK, DSSS and CCK
• OFDM: BPSK, QPSK, 16QAM, 64QAM
• Antenna   2 x detachable 2dBi dipole antennas (Reverse-SMA connector)
• Date Rate   802.11b: up to 11Mbps
• 802.11g: up to 54Mbps
• 802.11n: up to 300Mbps
• Security   64/128-bit WEP, WPA/WPA2-PSK
• Output Power   802.11b: 18dBm (typical)
• 802.11g: 15dBm (typical)
• 802.11n: 13dBm ((typical)
• Receiving Sensitivity   802.11b: -85dBm at 11Mbps
• 802.11g: -73dBm at 54Mbps
• 802.11n: -65dBm at 300Mbps
• Channels   1~11 (FCC), 1~13(ETSI)

Management

• Accounts   Up to 20 user accounts
• Remote Login   Remote management supported
• Backup / Restore   Save/retrieve configuration files
• Log   System log up to 1023 entries

Settings

• Image   Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black & white, day, night, schedule mode
• Video Setting   Encoding Type: MJPEG / MPEG-4 /H.264
• Resolution: 704 x 480, 352 x 240, 176 x112 (NTSC)
• Resolution: 704 x 576, 352 x 288, 176 x144 (PAL)
• Max. frame rate: 30 fps (NTSC) / 25fps (PAL)
• Recording   Resolution: Define individual resolution for up to 4 profiles
• Required storage: 32MB (minimum per profile)
• Recording type: event based (motion detection and digital input trigger), continuous, and scheduled
• Snapshot   Trigger event: motion detection or digital input signal
• Action: send alert email and/or upload to FTP
• Real time snapshot
• Port Settings   HTTP port: 80 (default)
• RTSP port: 554 (default)
• Dynamic DNS   Yes
• Time   Synchronize with NTP server or set time/date manually

Ringkasan  TRENDnet TV-IP612WN Wireless PTZ Internet Camera

Proview Wireless N Pan / Tilt / Zoom Camera Internet menyediakan keamanan di wilayah yang luas. 10x optical zoom dikombinasikan dengan digital zoom 16x dan teknologi auto fokus menangkap gambar yang jelas dari obyek yang jauh.
Wireless n teknologi memberikan jangkauan nirkabel yang tak tertandingi dan peningkatan kualitas video streaming. Pan kamera sisi ke sisi yang luar biasa 330 derajat dan miring up-dan-turun 115 derajat dari koneksi Internet. Mengelola hingga empat profil video untuk merekam video berkualitas H.264 sementara pada saat yang sama melakukan streaming konten ke telepon selular yang kompatibel 3GPP.
Tambahkan kamera ini ke jaringan nirkabel Anda dengan satu sentuhan tombol dengan Wi-Fi Protected Setup (WPS). TV-IP612WN sungai hingga resolusi 704 x 480 melalui koneksi nirkabel aman. Mengelola hingga 32 kamera Proview dengan disertakan gratis perangkat lunak manajemen kamera. Fitur canggih termasuk rekaman gerak deteksi, peringatan email, sesi rekaman dijadwalkan, H.264 dan MPEG-4 kompresi, 2-way audio, pan / tilt auto patroli, input / output port, zoom optik dan digital, dan built-in Micro slot kartu SD untuk menyimpan video langsung ke kartu memori. Sebuah dinding / langit-langit pemasangan kit disertakan dan perumahan IP kamera off-white menyatu menjadi lingkungan yang paling. Ini kamera brilian kualitas gambar, pan tilt dan fungsi, dan kemampuan merekam membuatnya ideal untuk rumah, kantor kecil, dan penggunaan bisnis.
